YouLoop ORIGINAL Portable Passive Magnetic Loop Antenna for HF and VHF
YLPRRTL-XLXWYLKE
Delivery
- Without marking: Maximum 10 - 15 business days
- Fast delivery: Maximum 10 business days
- 5-Day Delivery: Maximum 5 business days in the EU
- We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages

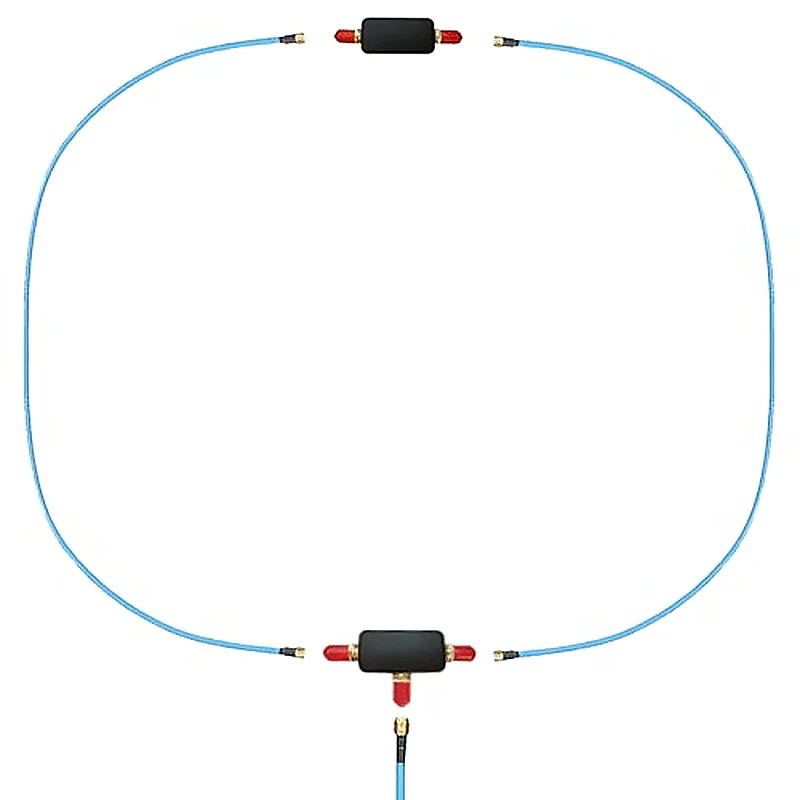

Includes 1x YouLoop balun "Tee", 1x Coax Inverter Connector, 2x 1 meter semi-rigid coax loop cables, 1x 2m semi-rigid coax feedline.
This is a super portable passive HF/VHF loop antenna designed for super low NF/MDS receivers like the Airspy HF+ Discovery. It also works to some extent with the RTL-SDR V3 in direct sampling mode if you enable RTL AGC. But for radios without super low MDS specs, the signals can be boosted on by using any external low cost HF amplifier, or even our wideband LNA.
Note: This antenna is designed for portable RX only use and is not weatherproof. Permanent mounting can be achieved with weather proofing tape.
Specifications
- HF Response: 10kHz to 30 MHz
- VHF Response: up to 300 MHz
- Maximum Power: 250 mW
- Passive Design
- No Tuning required
- Low-Loss Wide-Band BALUN with 0.28 dB loss typ.
