RTL-SDR Multipurpose Dipole Antenna Kit

RTL-RTL-2QFBTAUN
Write a review
€3426
€4372 You save: €9.45
In stock
10 Days
Price in points: 35 points
Shipping time and rates:
Your city
+ −
Add to wish list Compare Ask a question
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages
Add to this product
  • RTL-SDR

A multipurpose dipole antenna kit. Great for those getting started with SDR.

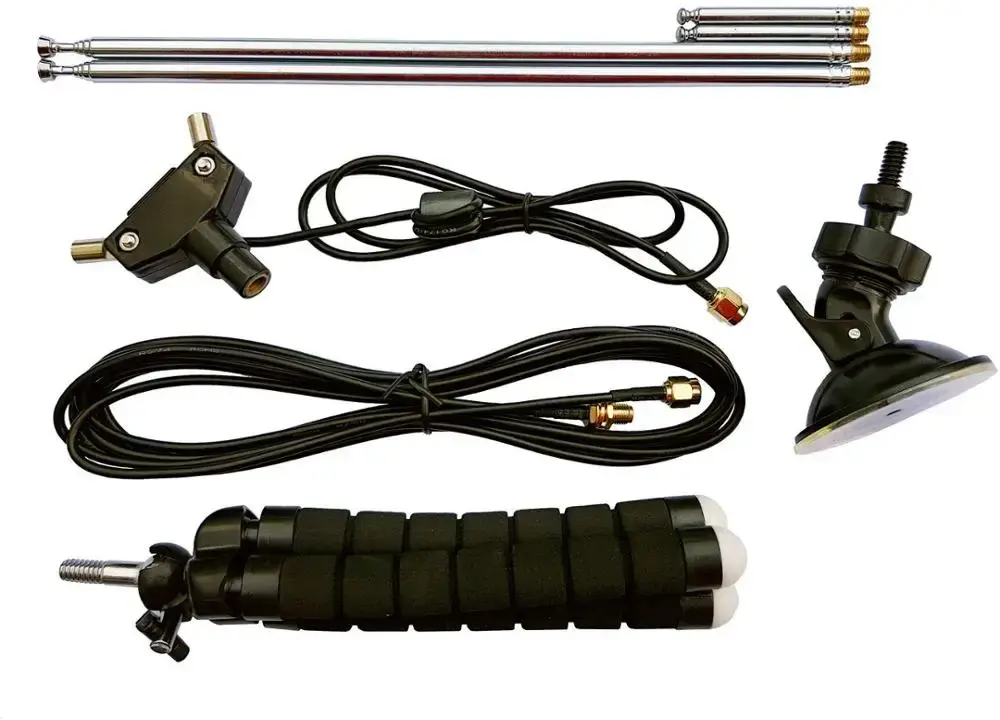

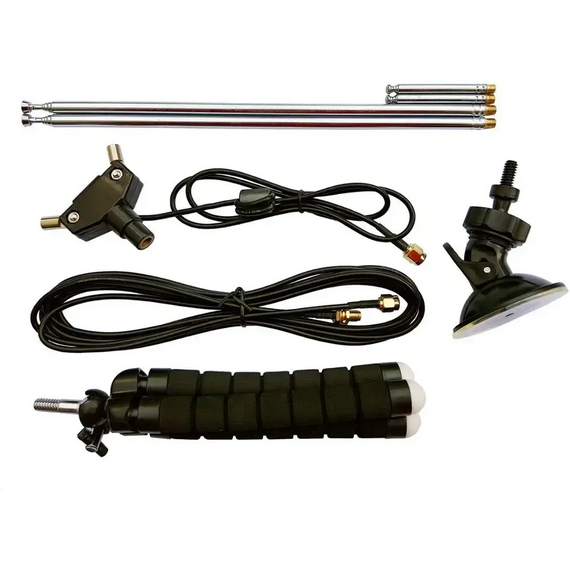

Includes:

  1. 1x dipole antenna base with 60cm RG174 cable and SMA Male connector. This is the dipole base where the telescopic antennas connect to. The short run of RG174 is decoupled from the base elements with a ferrite choke. This helps to prevent the feed line from interfering with the dipole radiation pattern. On the inside there is a 100 kOhm resistor to help bleed off any static. The dipole has a 1/4 inch female screw on the bottom, which allows you to use standard camera mount products for mounting.
  2. 1x 3 meter RG174 coax cable extension.This coax cable extension allows you to mount the antennas in a place that gets better reception. E.g. outside on a window, or higher up.

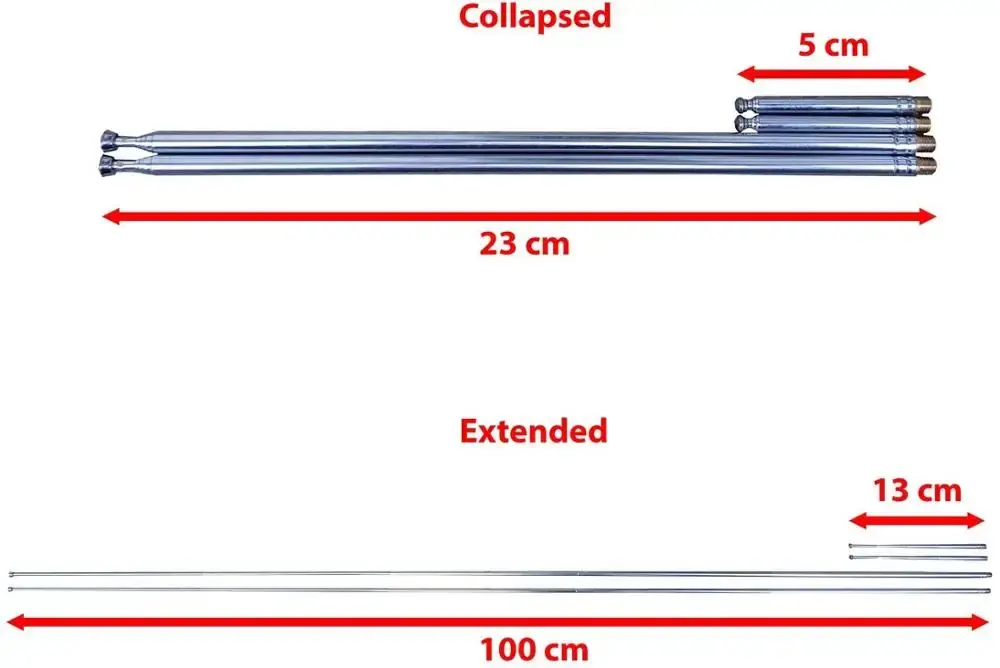

  3. 2x 23cm to 1 m telescopic antennas.The telescopic dipoles are detachable from the dipole base via a M5 thread which allows for greater portability and the ability to swap them out. These long telescopic antennas cover VHF to UHF.
  4. 2x 5cm to 13cm telescopic antennas.These smaller antennas cover UHF to 1090 MHz ADS-B, and even still work decently up to L-band 1.5 GHz frequencies.
  5. 1x flexible tripod mount with 1/4" male screw.This piece allows you to mount the dipole on a variety of different locations. E.g. a pole, tree branch, desk, door, window sill. The legs of the tripod are bendy and rubberized so can wrap securely around many objects.
  6. 1x suction cup mount with 1/4" male screw.With this mount you can mount the dipole on the outside of a window, on a wall, car

Features for RTL-SDR Multipurpose Dipole Antenna Kit

Brand Name
RTL-SDR
Find similar

Reviews for RTL-SDR Multipurpose Dipole Antenna Kit

5
5 out of 5
Reviews: 6
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 star
0%


Sorin Simion
Verified purchase
5
Comment
Everything works Super
Mehmet Avci
Verified purchase
5
Comment
The delivery was also scheduled for April 23 and arrived on April 15. The order was also made on April 7. The antenna is also to increase the gain of the local FM station in the indoor installation, so I am satisfied.
Viesulas Urbonas
Verified purchase
5
Advantages
Easy to use
Nice quality
Comment
I've been looking for something similar for a long time. I am very happy with the purchase of this set, as it is really versatile. You can place the antenna in the most optimal position with this kit. The package was received very quickly and I can definitely recommend it.
Филчо Зенгинов
Verified purchase
5
Comment
Really good
Daniel Tudor
Verified purchase
5
Advantages
Calitate buna
Comment
Calitate buna a ventuzei si a trepiedului, foarte practic.
Cristi
Verified purchase
5
Comment
Impachetat bine. Isi face treaba cum trebuie! Recomand

No customer questions. Be the first to ask a question.
