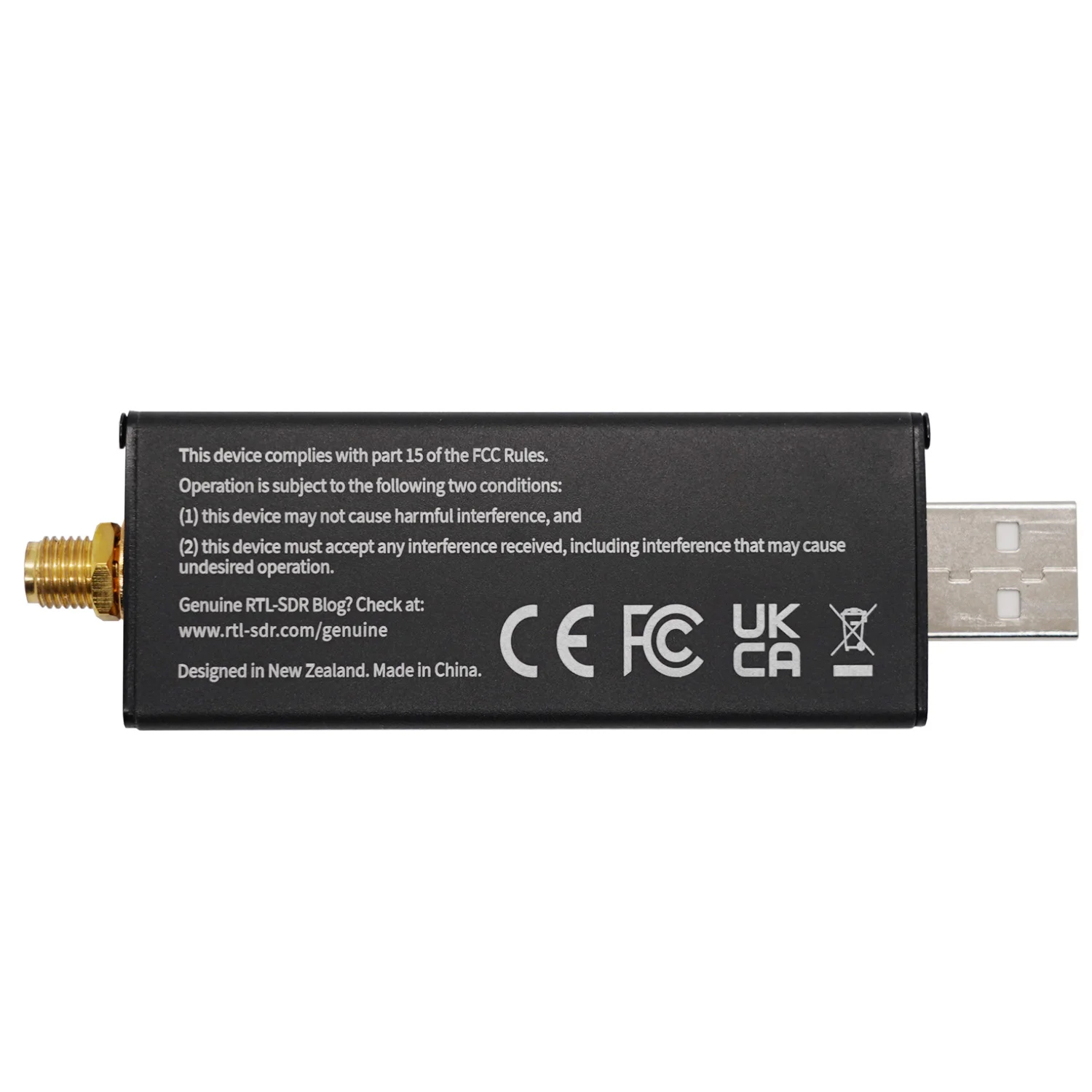

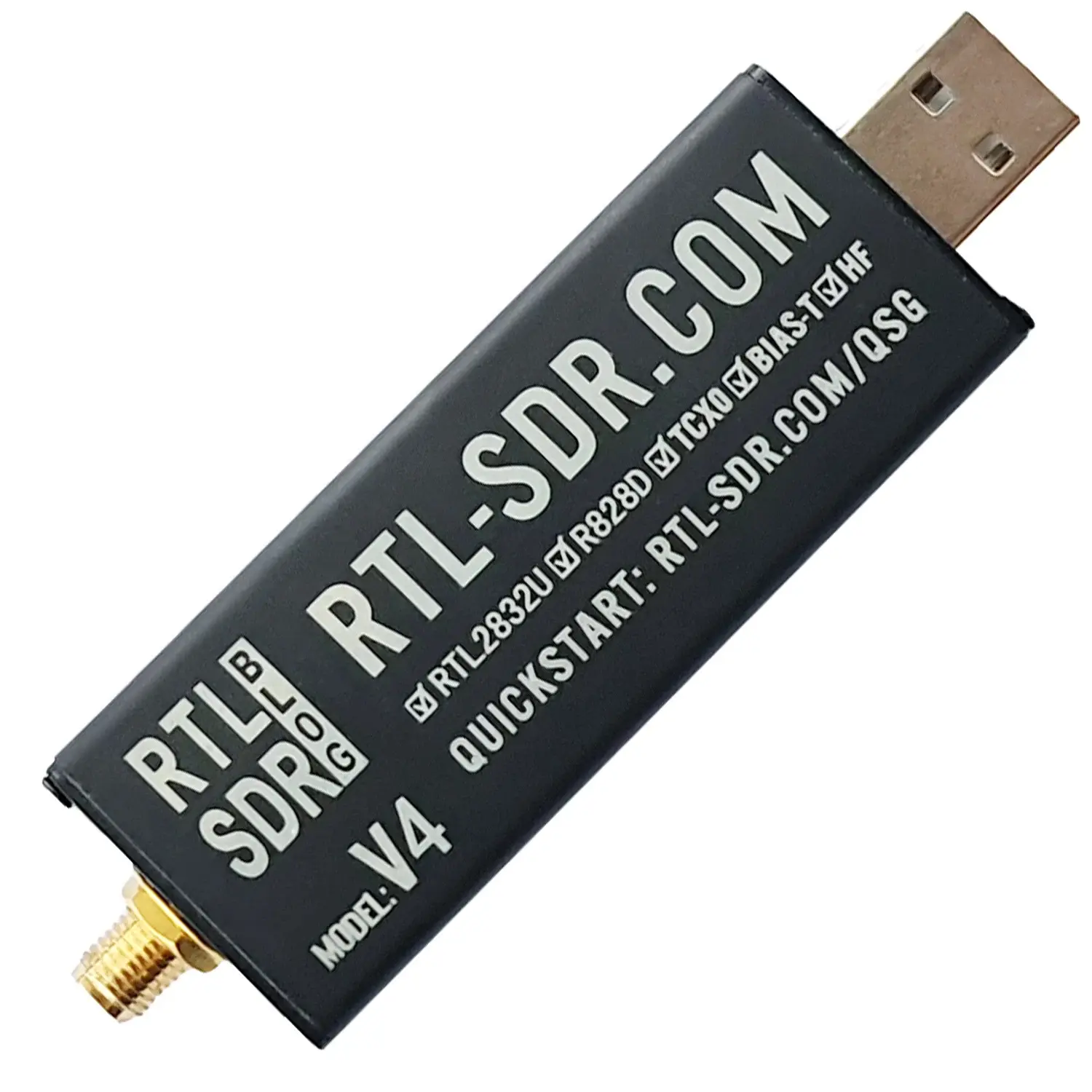

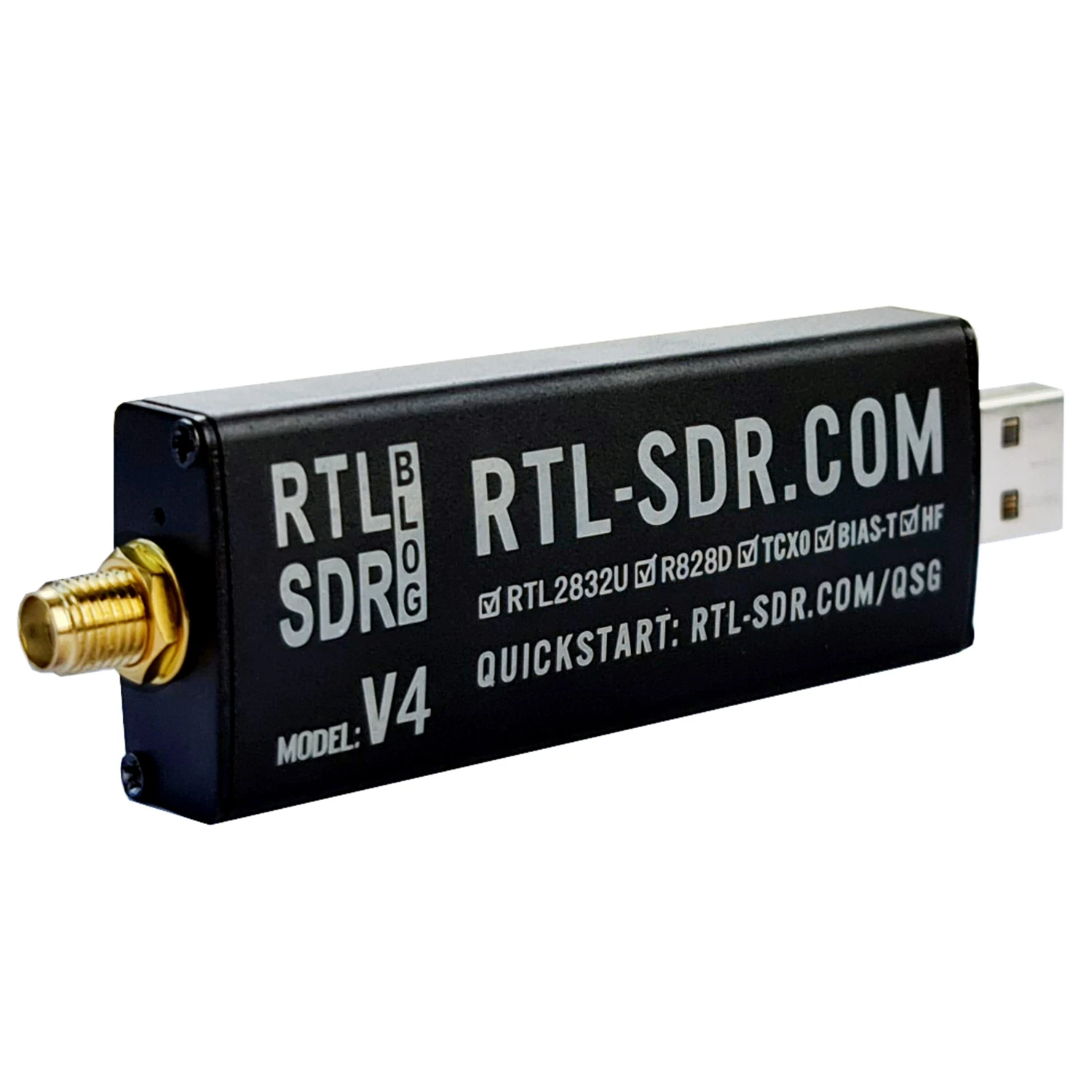

Includes 1x RTL-SDR Blog V4 R828D RTL2832U 1PPM TCXO HF Bias Tee SMA RTL SDR Dongle. (Dongle Only Listing)

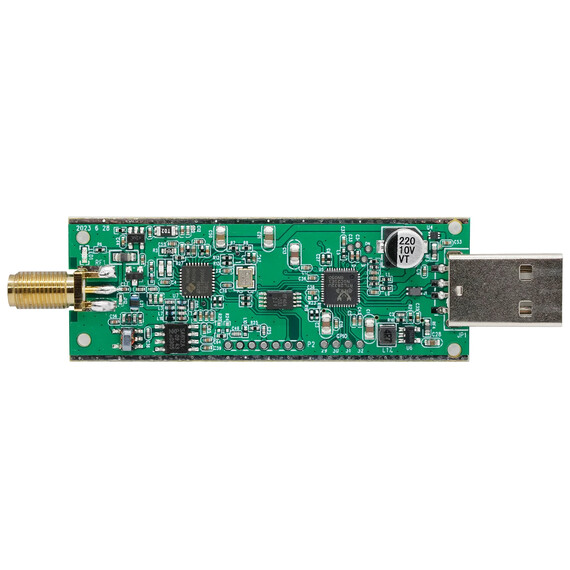

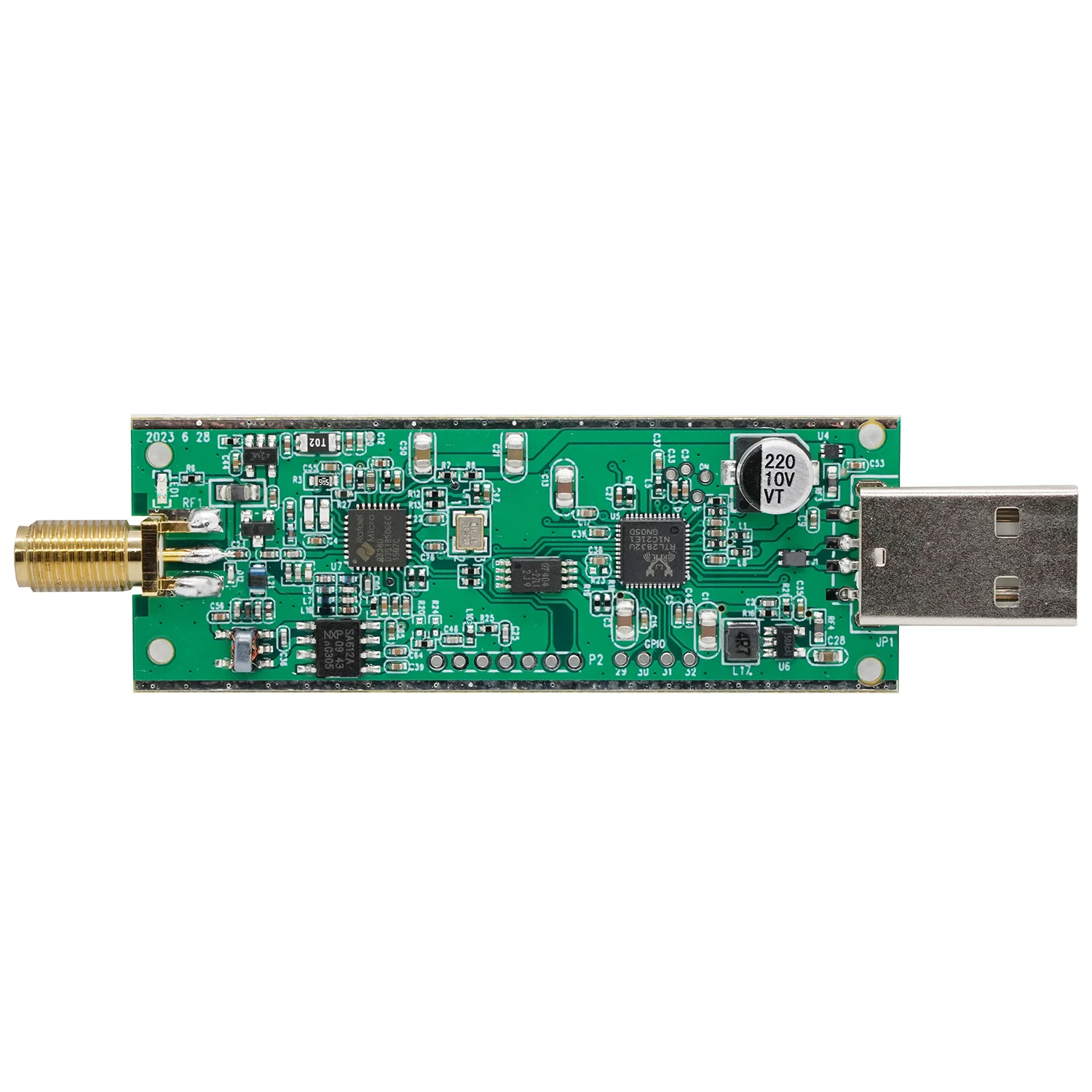

This is an RTL SDR blog software defined radio receiver with RTL2832U ADC chip, R828D tuner, 1PPM TCXO, SMA F connector and aluminium case with passive cooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz (2.4 MHz stable) of bandwidth. Perfect for use as a computer based radio scanner with free software like SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works on Windows, OSX, Linux, Android and Computers like The Raspberry Pi. Great for many applications including general radio scanning, air traffic control, public safety, ADS-B aircraft radar, marine AIS, ACARS, trunked radio, P25/MotoTRBO digital voice, POCSAG, weather balloons, APRS, NOAA APT/ Meteor M2 weather satellites, radio astronomy, DAB, or as a low cost panadapter with a ham radio.

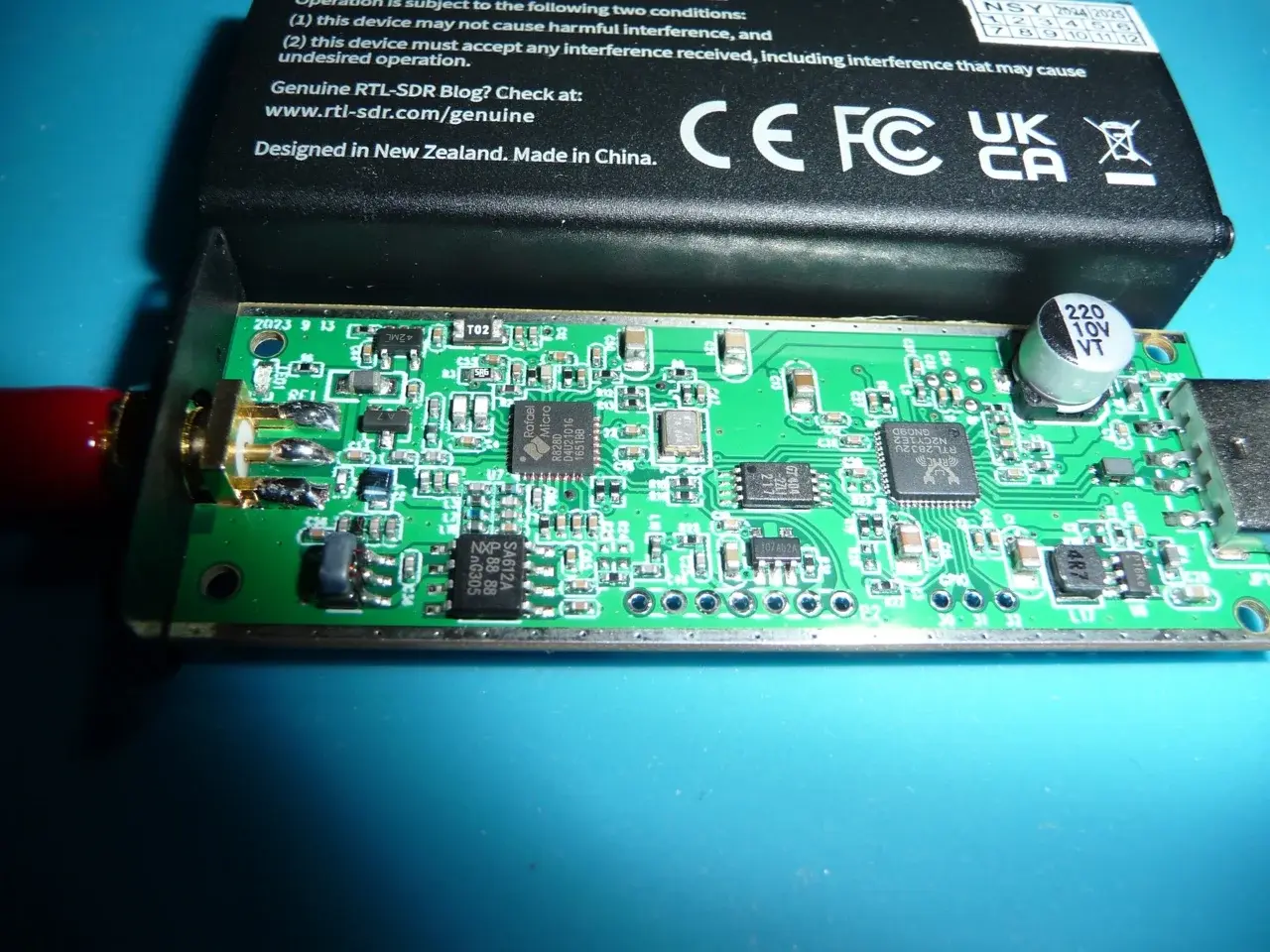

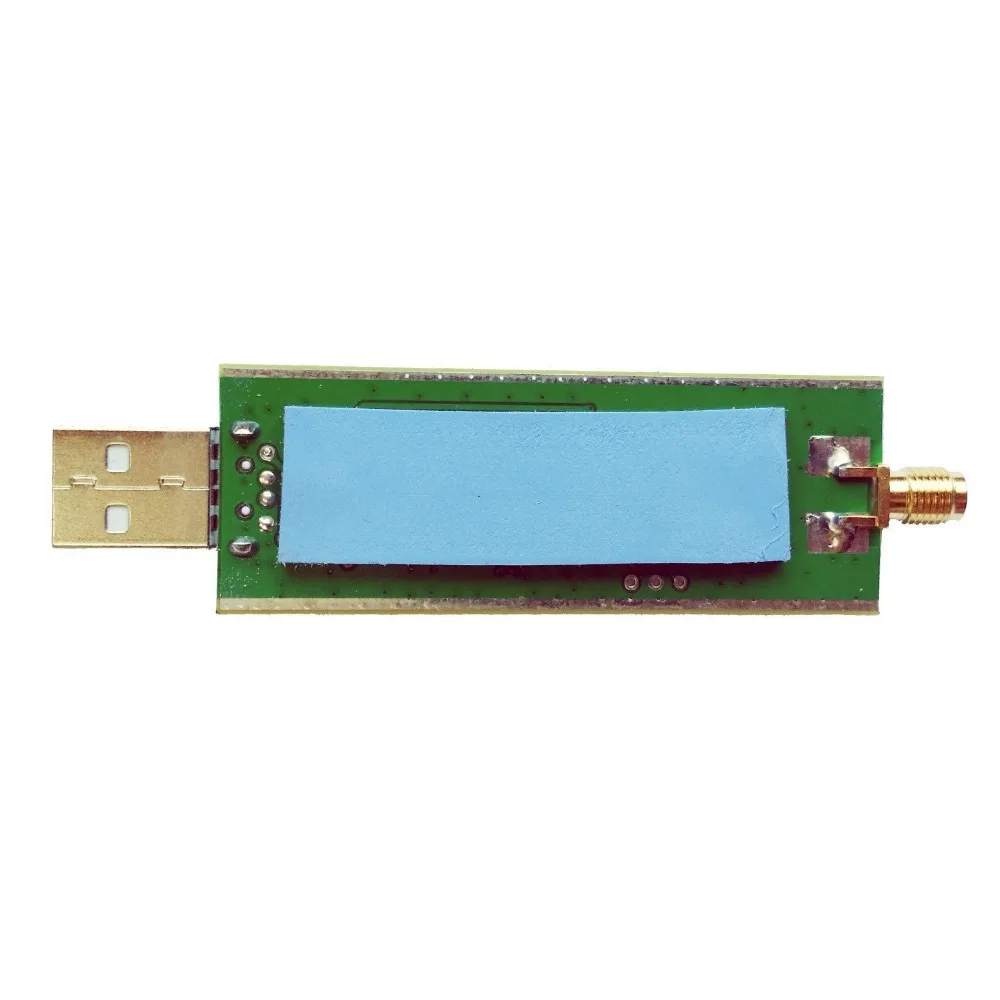

This model has several improvements over other brands. It uses the improved R828D tuner, has an improved front end with filtering, a 1PPM TCXO, better components, a redesigned lower noise PCB, cooling improvements, extra ESD protection and an SMA F connector. It also has a software activatable bias-tee for powering LNA's and active antennas. It also has HF reception capabilities. Most standard RTL-SDR dongles can tune down to 24 MHz at the lowest. This model has a built in upconverter, and allows for tuning down to 500 kHz. There is a built in 28.8 MHz low pass filter for optimizing this mode.
- Comment
- Comment
- Comment
- Comment
- Comment
- Comment
- Comment
- Comment
- Comment
- Comment
No customer questions. Be the first to ask a question.
We deliver products internationally.
We offer only those goods, in which quality we are sure
You have 10 days to test your purchase
