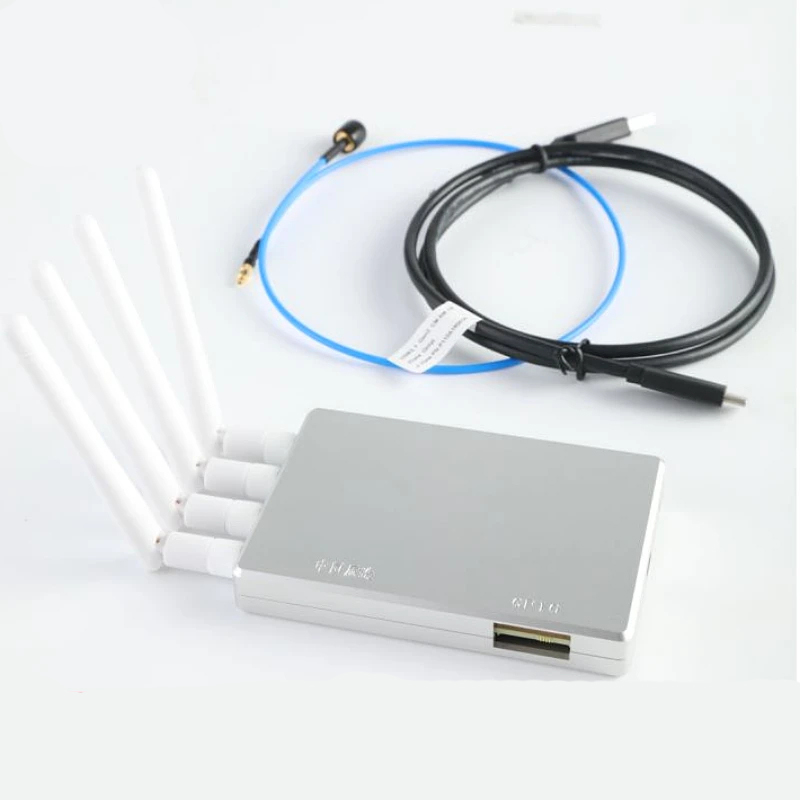

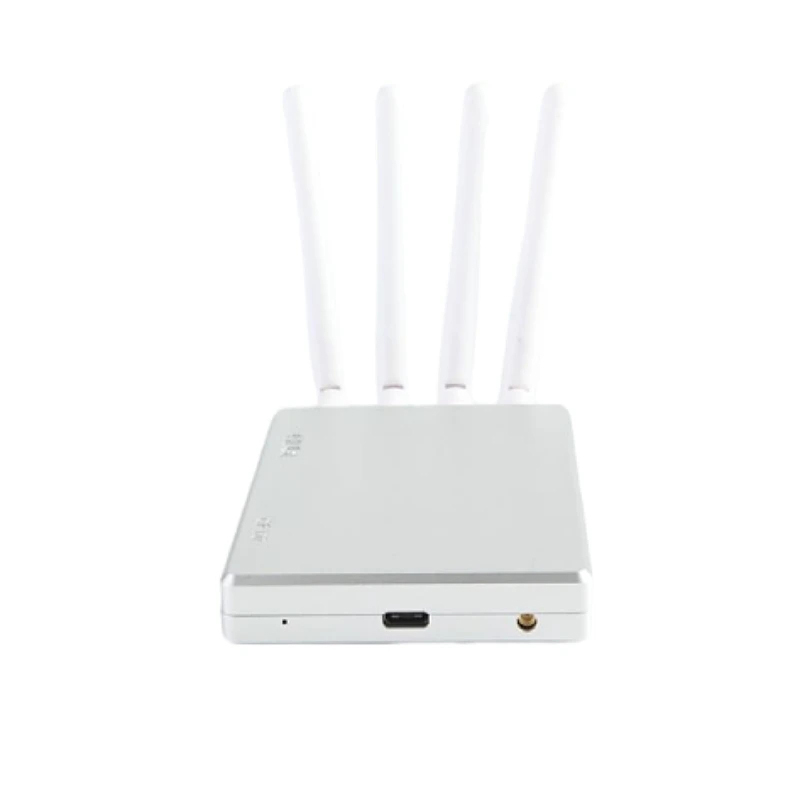

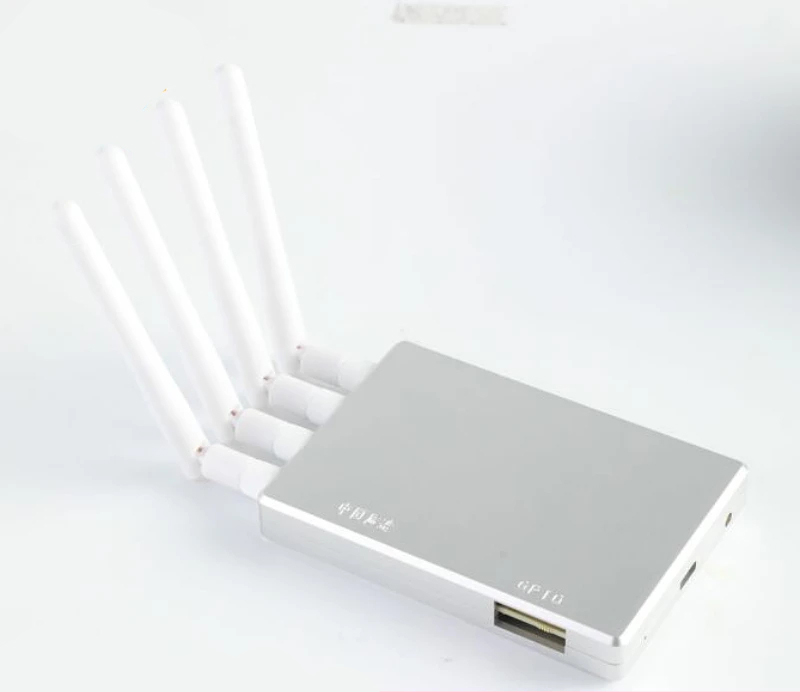

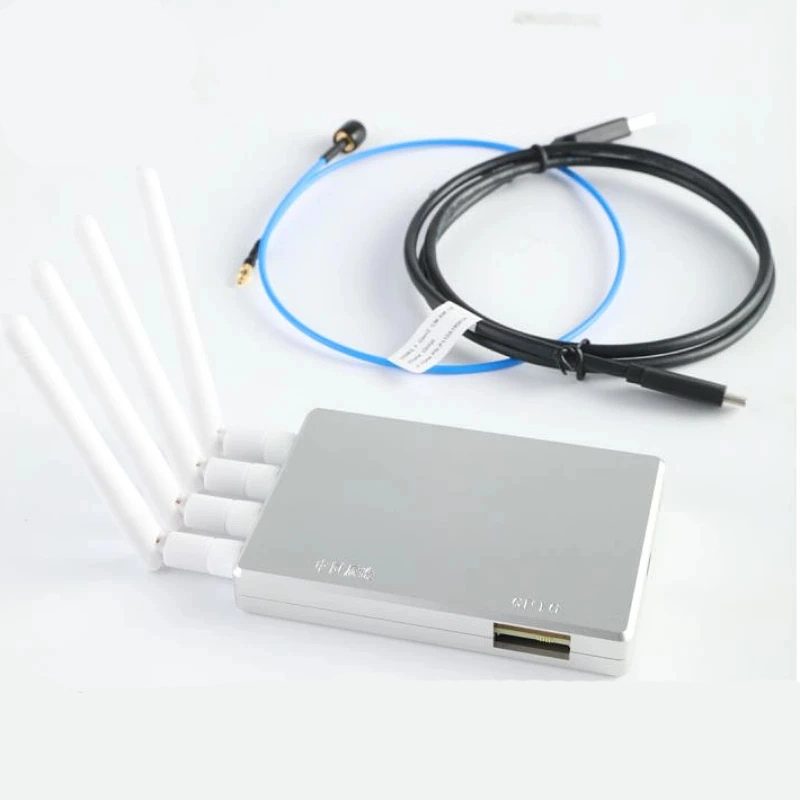

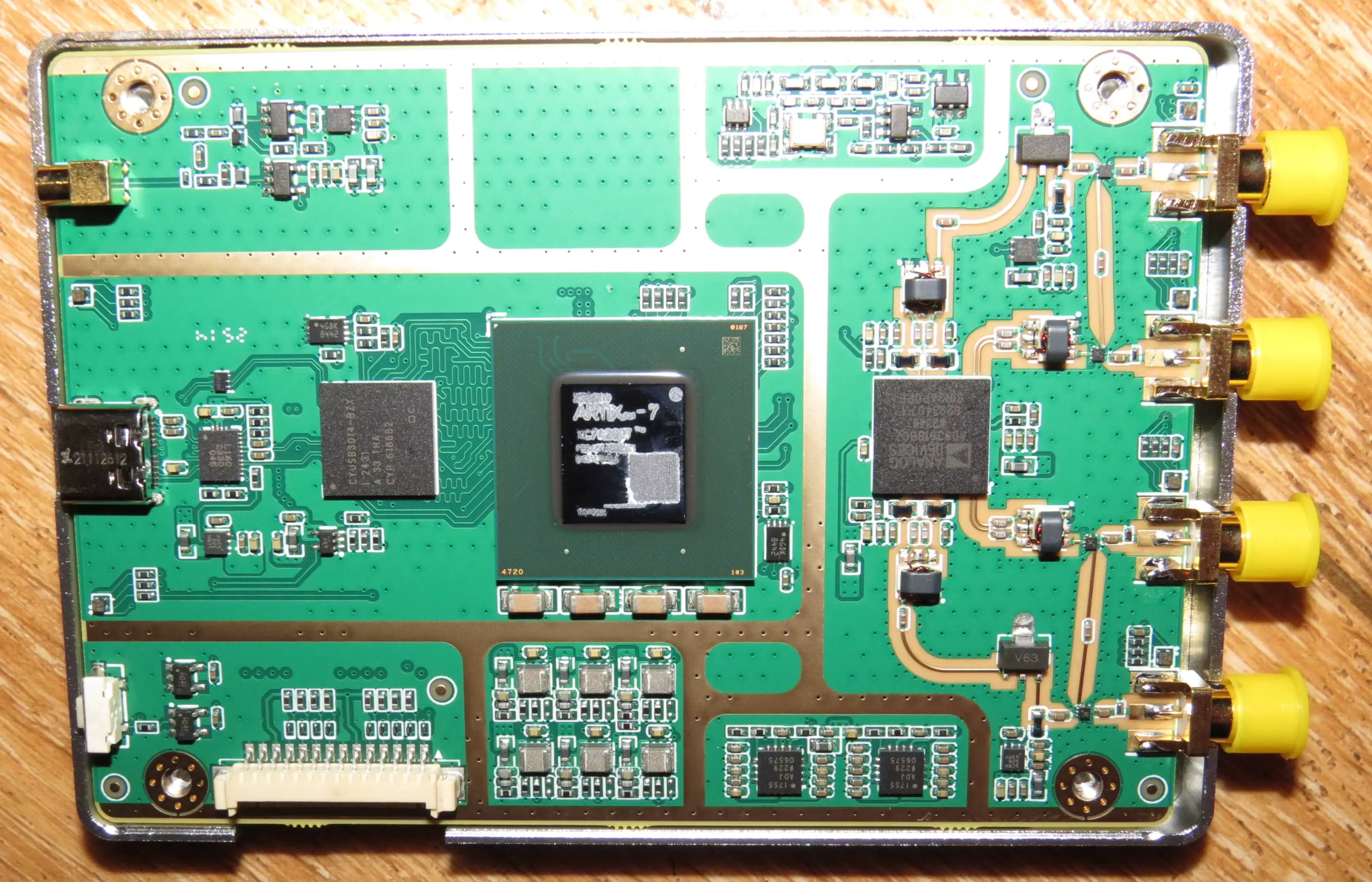

This 70MHz-6GHz 2R2T B210 Mini AD9361 SDR Development Board offers full compatibility with B210 on both Windows and Linux. Easily replace bin files with our provided automatic replacement script for Linux or use replacement directories on Windows for seamless integration with Matlab, Gnuradio, SDAngel, and OAI. Powered by a Xilinx Artix7 series FPGA, it significantly reduces power consumption while offering enhanced resources for SDR applications. Compatible with both 7A100T and 7A200T, the board supports external clock taming, PPS/10M frequency synchronization, and PPS phase synchronization. Equipped with a USB 3.0 Type-C interface and upgraded ADI output PA, it ensures efficient energy conversion with enhanced performance.

Technical Specifications:

  • Frequency range: 70MHz-6GHz
  • Max sampling rate: 61.44MHz
  • Supports 2R2T with 12-bit AD/DA quantization
  • Transmission power: 2dBm at 6GHz, 15dBm at 1GHz, >10dBm at 2.4GHz

Ideal for learning and research, this board integrates with Matlab for algorithm validation, Gnuradio for spectrum detection, and supports OAI testing with commercial UE in the N78 band. It’s perfect for experimenting with mobile communications using OAI and SRSRAN
