LimeSDR Mini V2.2 Software Defined Radio

CODE:

Write a review

€703⁵⁷

€879⁵⁸ You save: €176.01

In stock

Bundle:

Bundle 6

Return period: 14 Days

Price in points: 718 points

Shipping time and rates:

Your city

+ −

Ask a question

View all variations as list

CODE	Bundle	Availability	Price
LMSDLMSDTCDK8PTT	Bundle 1	In stock	€674¹⁵	+ −
658C193C14B05	Bundle 2	In stock	€686⁴⁶	+ −
658C193C14B0A	Bundle 3	In stock	€701⁶¹	+ −
658C193C14B0D	Bundle 4	In stock	€702⁵⁹	+ −
658C193C14B10	Bundle 5	In stock	€703⁵⁷	+ −
658C193C14B13	Bundle 6	In stock	€703⁵⁷	+ −
658C193C14B16	Bundle 7	In stock	€703⁹²	+ −
658C193C14B1A	Bundle 8	In stock	€706⁰⁷	+ −

Delivery

Without marking: Maximum 10 - 15 business days
Fast delivery: Maximum 10 business days
5-Day Delivery: Maximum 5 business days in the EU
We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.

Payment options

Our advantages

Save 20%

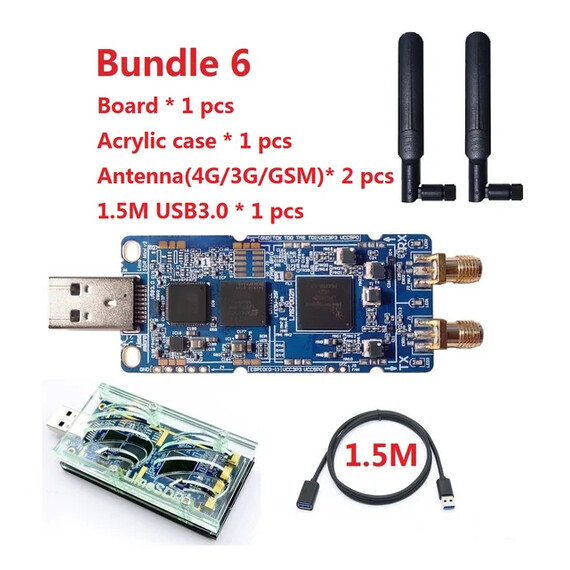

LimeSDR Mini V2.2 Software Defined Radio, Bundle: Bundle 6

Description
Features
Reviews 1
Q&A

LimeSDR vs LimeSDR Mini

LimeSDR and LimeSDR Mini are part of the same family of software-defined radios. One does not replace the other. Instead, they complement each other. In short, LimeSDR Mini is a smaller, more affordable version of the original LimeSDR. However, it retains the same LMS7002M radio transceiver at its core as its larger counterpart. The Mini has two channels instead of four and, by popular demand, SMA connectors instead of micro U.FL connectors. Please refer to the comparison table below for more details. We have already shipped thousands of LimeSDR boards, and they are now available for purchase in stock. LimeSDR Mini is built on the supply chain, development tools, and the LimeSDR community in a way that makes software-defined radio more accessible than ever.

RF transceiver: Lime Microsystems LMS7002M
FPGA: Intel Altera MAX 10 (10M16SAU169C8G) FBGA package with 169 pins 16 K Les 549 KB M9K memory 2.368 KB user flash memory 4 x phase-locked loop (PLL) fractional block loops 45 x 18x18-bit multipliers 130 x general-purpose inputs/outputs (GPIO) Single power supply Flash function FPGA configuration via JTAG
EEPROM memory: 2 x 128 KB for RF transceiver MCU firmware and data
Flash memory: 1x4 MB for data
User general-purpose inputs/outputs: 2 x bicolor LEDs (red + green) 8 x FPGA GPIO header pins (3.3 V)
Connectivity: USB 3.0 Type-A (FTDI FT601 controller) 2 x coaxial RF connectors (SMA) (each switchable between high and low-frequency bands) U.FL connector for external clock source FPGA GPIO headers FPGA JTAG connector
Clock system: On-board 30.72 MHz VCTCXO Ability to adjust VCTCXO with on-board DAC External clock input via U.FL connector
Board dimensions: 69 mm x 31.4 mm
Board weight: 20 grams

Features for LimeSDR Mini V2.2 Software Defined Radio
