LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh

Write a review

€104⁷²

€131⁷² You save: €27.01

In stock

Color:

Black Transparent

Return period: 14 Days

Price in points: 107 points

Shipping time and rates

+ −

Ask a question

View all variations as list

	CODE	Color	Availability	Price
	67D06978E4CBF	Black	In stock	€108⁶⁴	+ −
		Transparent	In stock	€104⁷²	+ −

Delivery

Without marking: Maximum 10 - 15 business days
Fast delivery: Maximum 10 business days
5-Day Delivery: Maximum 5 business days in the EU
We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.

Payment options

Our advantages

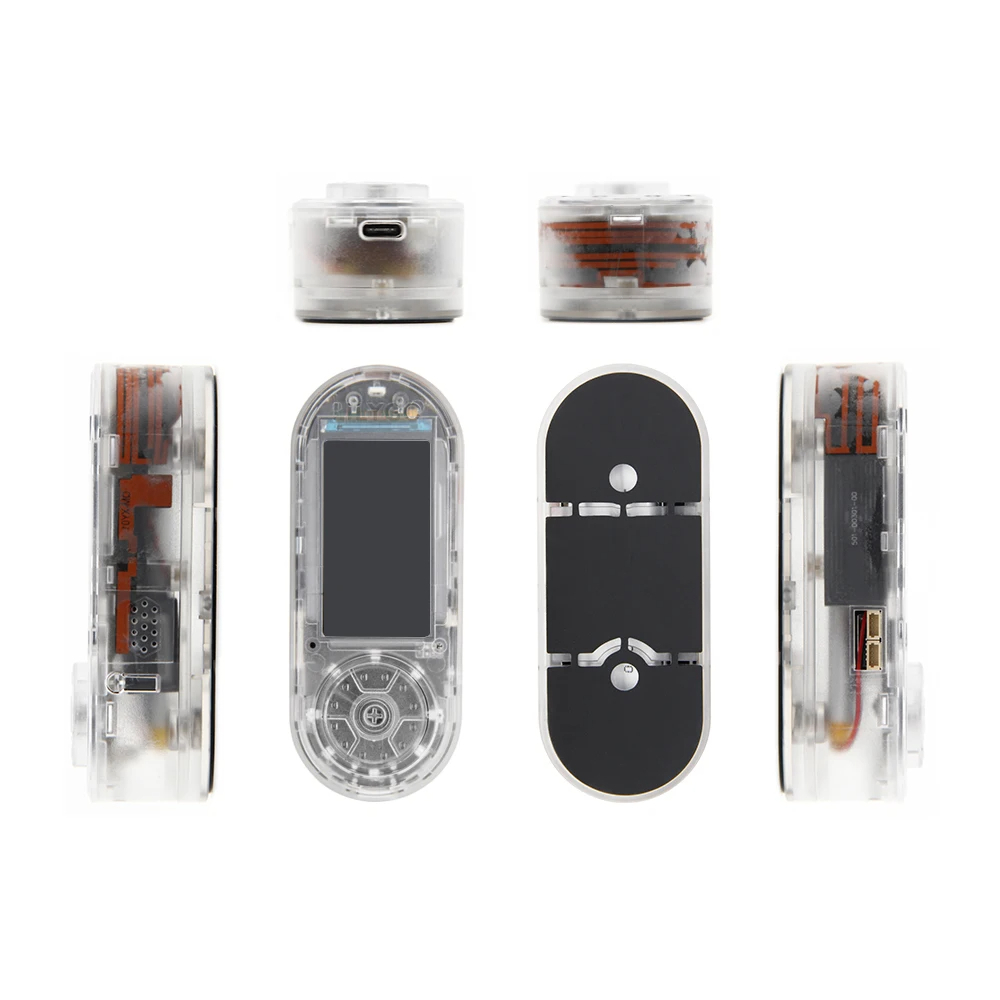

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent

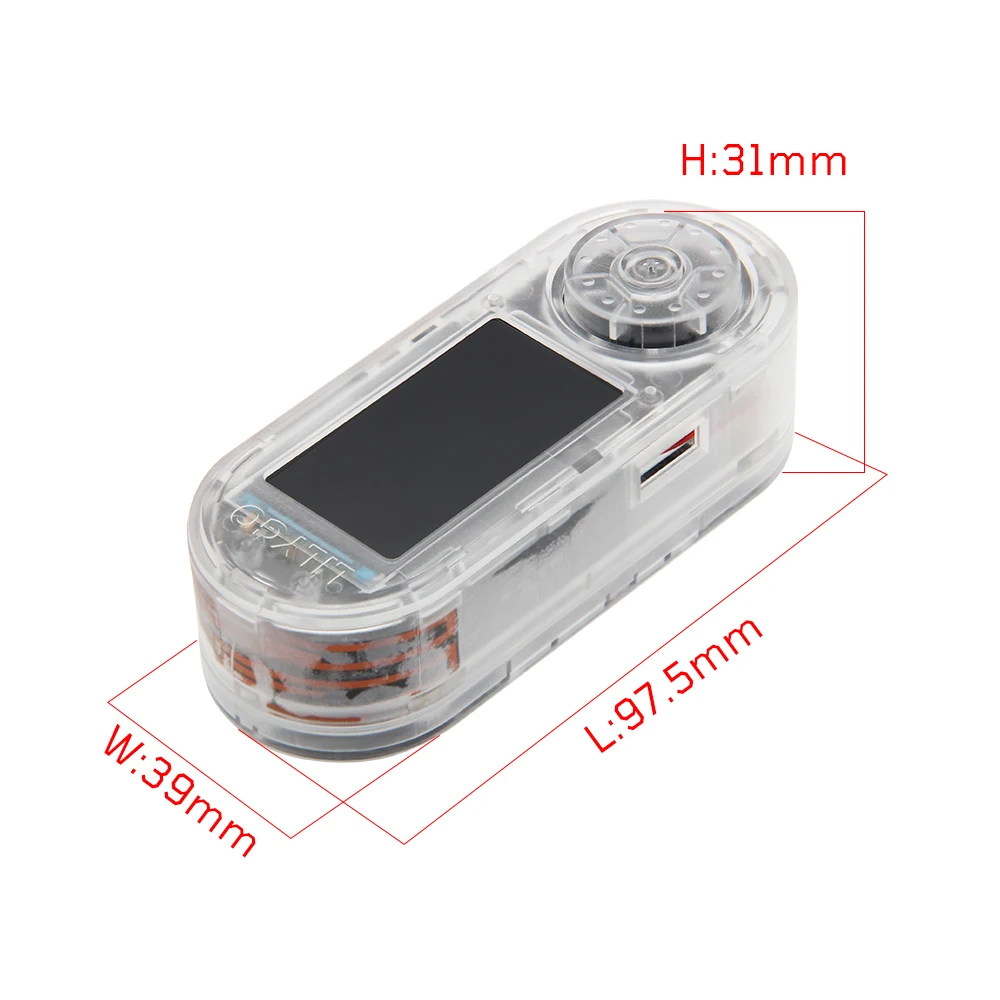

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent, 2 image

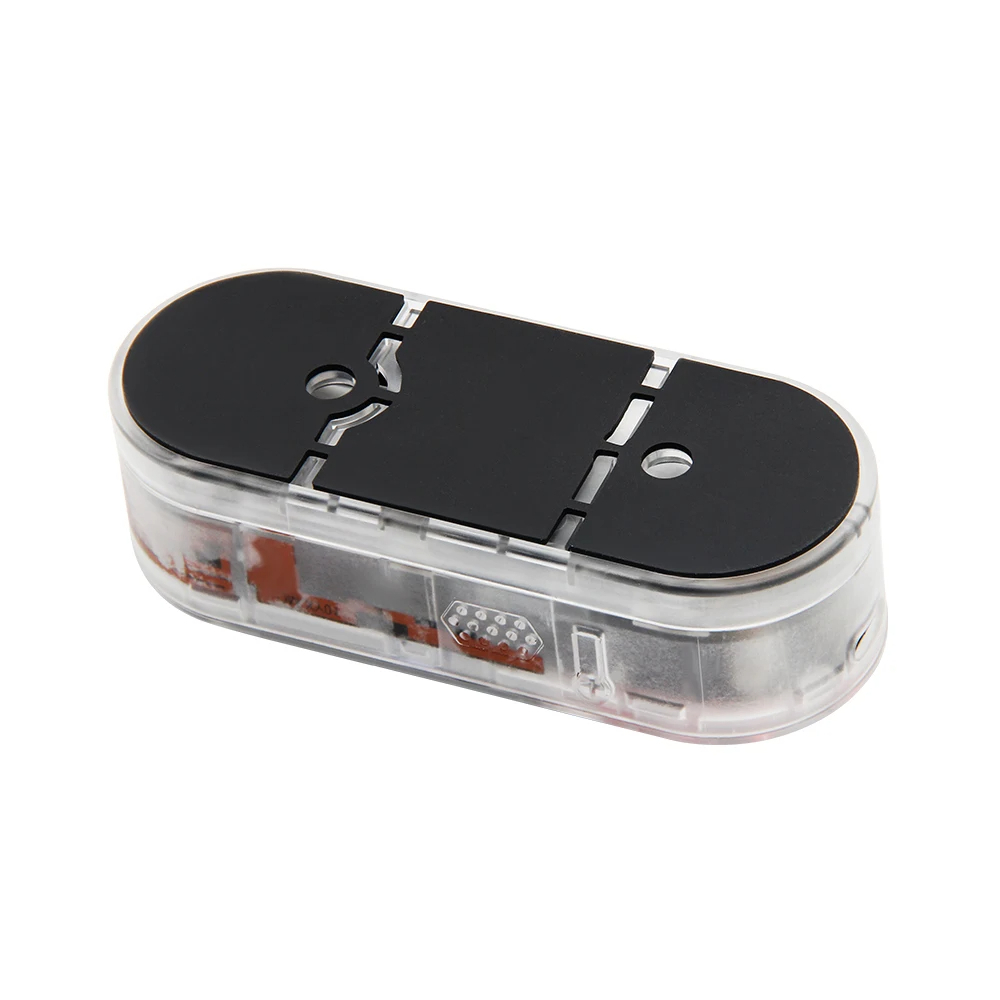

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent, 3 image

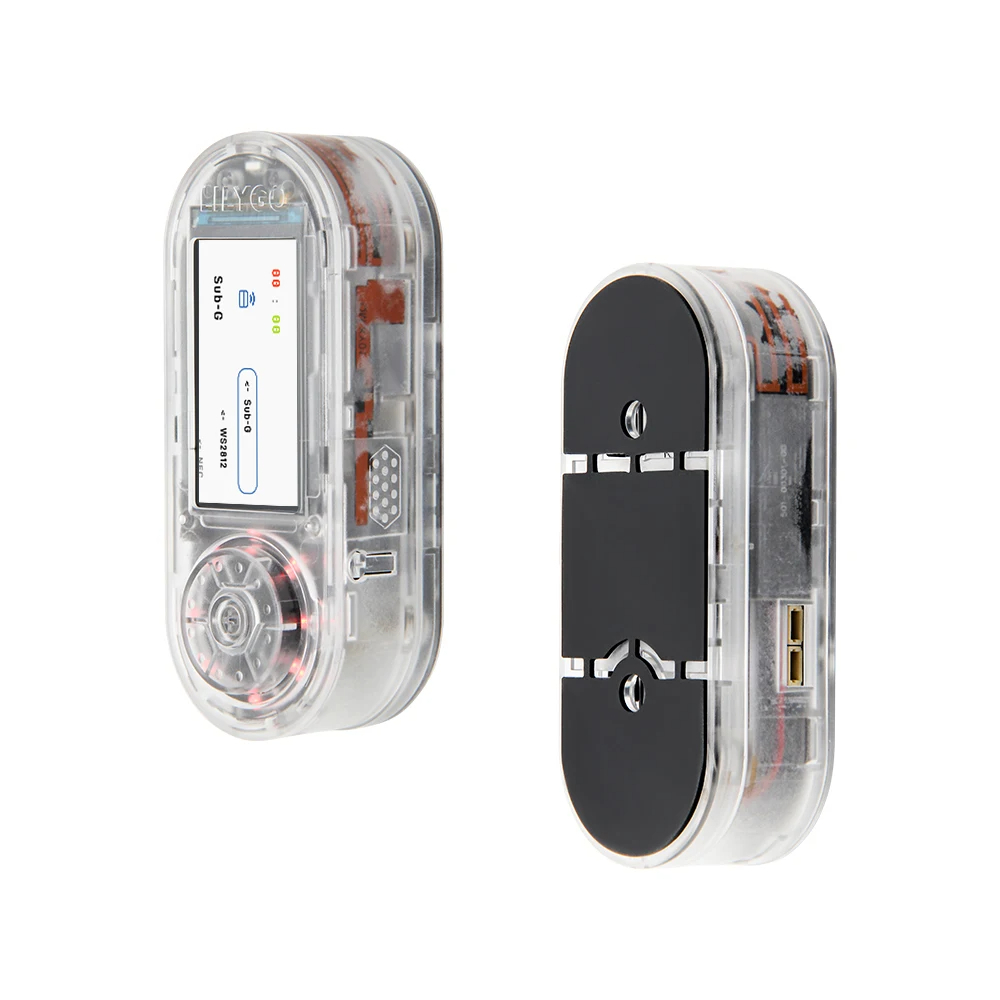

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent, 4 image

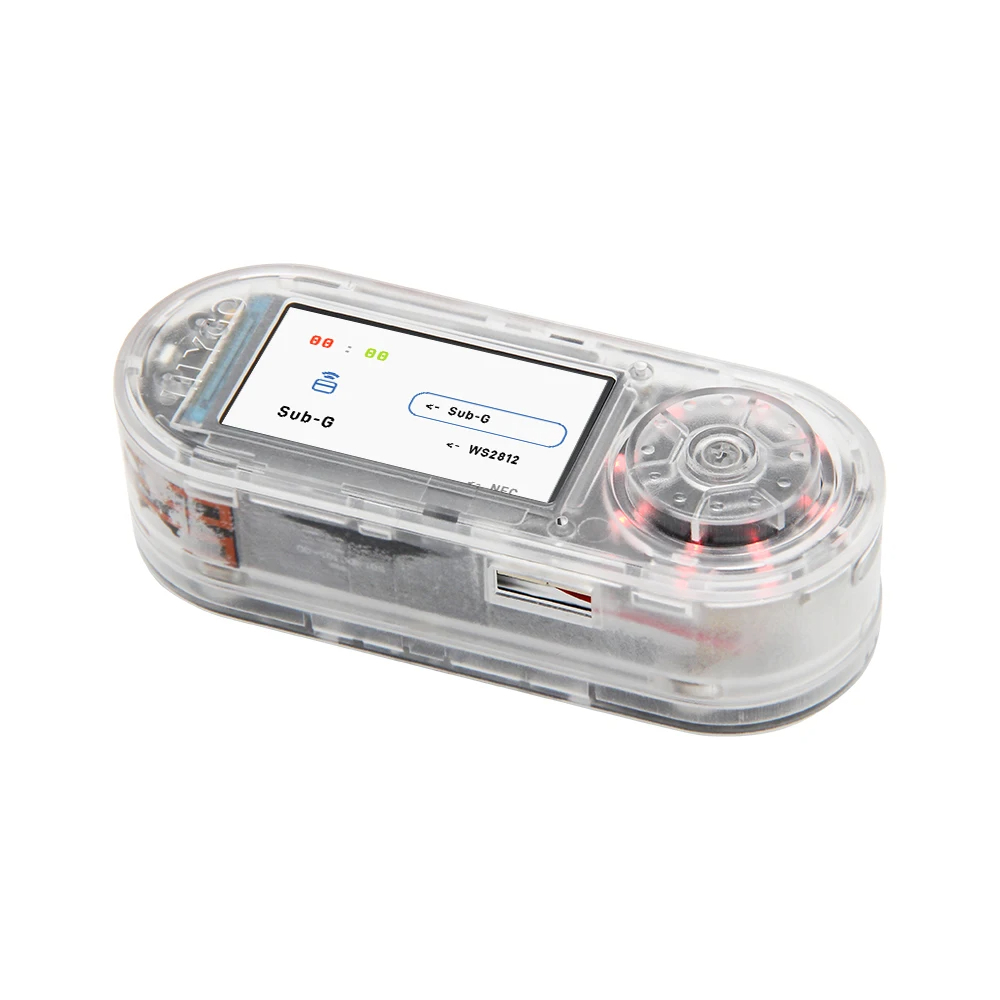

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent, 5 image

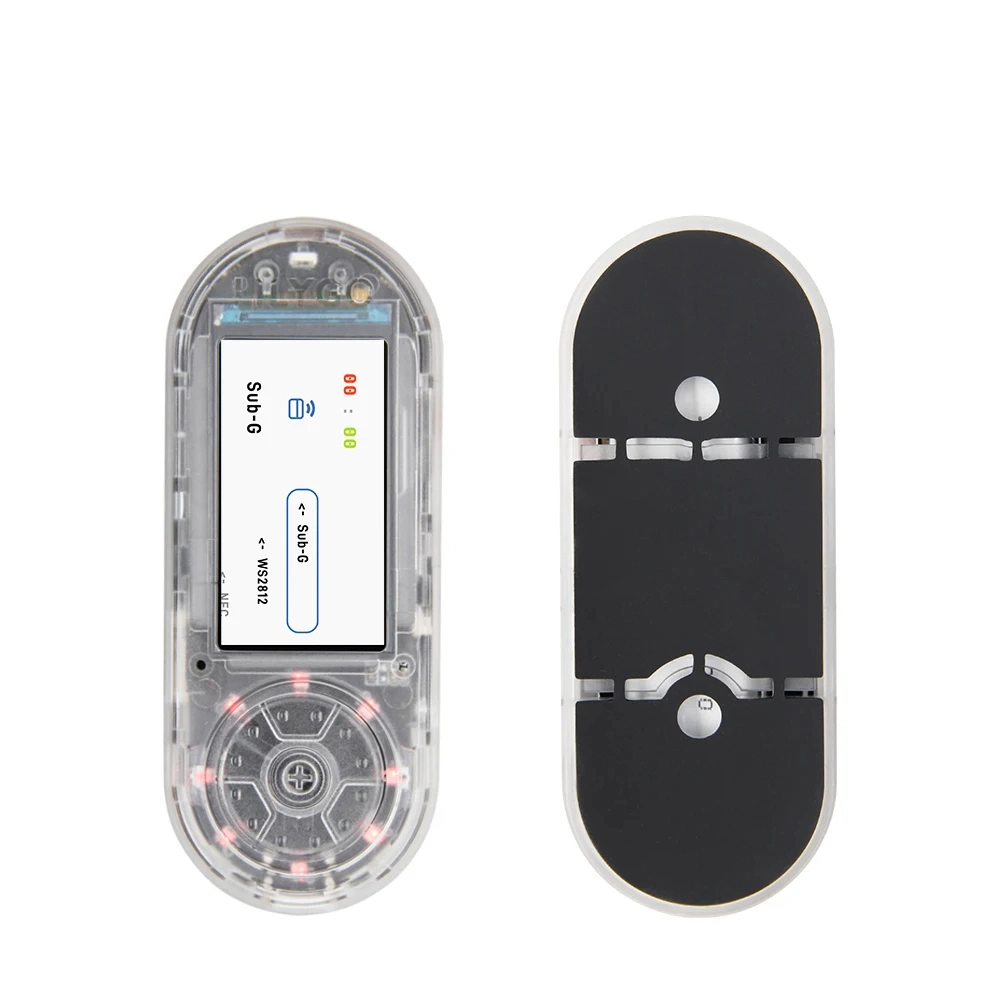

LILYGO® T-Embed ESP32-S3 CC1101 Low-Power Sub-1 GHz RF Transceiver Built-in Battery 1300mAh, Color: Transparent, 6 image

Description
Features
Reviews
Q&A

The LILYGO® T-Embed ESP32-S3 CC1101 is a high-performance, low-power wireless module designed for IoT applications. Featuring a dual-core ESP32-S3 microprocessor, built-in 2.4 GHz Wi-Fi and BLE 5, and advanced RF capabilities with the CC1101 transceiver, this module is perfect for sub-1 GHz communication. Additionally, the PN532 NFC RFID module enables seamless contactless communication.

Key Features:

MCU: ESP32-S3 Dual-core LX7 processor
Wireless Connectivity: 2.4 GHz Wi-Fi, BLE 5
RF Transceiver: CC1101 Low-Power Sub-1 GHz (300-348, 387-464, 779-928MHz)
NFC/RFID: PN532 I2C transceiver module
Display: 1.9-inch ST7789V IPS TFT LCD (170x320 RGB resolution)
Built-in Power: 1300mAh Li-Po battery
Expandable Storage: TF card slot
Additional Features: Microphone, WS2812 RGB LED, IR Transmit & Receive, Speaker slot

Advanced Hardware:

Flash Memory: 16MB
PSRAM: 8MB
FPGA: Not applicable (uses ESP32 processing power)
GPIO & Expansion: Multiple I/O interfaces, I2C, SPI, JTAG

Applications:

The LILYGO® T-Embed is ideal for IoT, wireless communication, sub-1 GHz RF applications, and NFC/RFID-based projects. Its compact design with a built-in battery makes it an excellent choice for embedded systems and portable applications.

Experience seamless integration with the latest wireless communication technologies with LILYGO® T-Embed ESP32-S3 CC1101.
