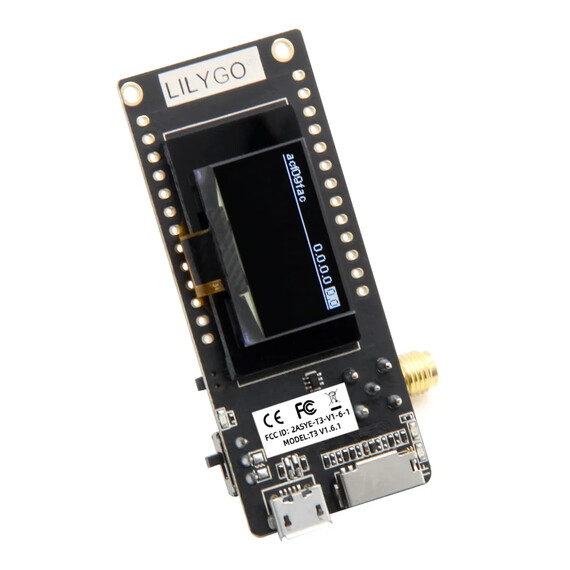

LILYGO Disaster-Radio LoRa V2.1_1.6.1 ESP32 433/868/915Mhz WIFI Wireless Bluetooth Module 0.96 Inch OLED SD Development Board

LLYGLLYGT2QGTZSC
3867
4071 You save: 204
In stock
Black Friday Deals: Enjoy Savings and Unbeatable Offers All Week Long!
Promotion expires within:
14 Days
Price in points: 40 points
Shipping time and rates:
+
Add to wish list Compare Ask a question
  • View all variations as list
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages

Disaster-Radio offers a groundbreaking off-grid, solar-powered, long-range mesh network based on open-source software and affordable hardware. The LoRa32 V2.1_1.6.1 module, featuring an ESP32 microcontroller, is designed to provide reliable communication in disaster scenarios, making it perfect for emergency responders and remote communities.

Key Specifications:

  • Microcontroller Unit (MCU): ESP32
  • USB Serial Chip: CH9102F
  • Working Voltage: 1.8~3.7V
  • Acceptable Current: 10~14mA
  • Transmit Current:
    • 120mA @ +20dBm
    • 29mA @ +13dBm
    • 90mA @ +17dBm
  • Operating Frequency: 433/868/915MHz
  • Transmit Power: +20dBm
  • Receive Sensitivity:
    • -139dBm @ LoRa & 62.5kHz & SF=12 & 146bps
    • -136dBm @ LoRa & 125kHz & SF=12 & 293bps
    • -118dBm @ LoRa & 125kHz & SF=6 & 9380bps
    • -123dBm @ FSK & 5kHz & 1.2Kbps
  • Frequency Error: ±15KHz
  • FIFO Space: 64 bytes
  • Data Rate:
    • 1.2K~300Kbps @ FSK
    • 0.018K~37.5Kbps @ LoRa
  • Modulation Modes: FSK, GFSK, MSK, GMSK, LoRa™ , OOK
  • Interface: SPI
  • Sleep Current:
    • 0.2µA @ SLEEP
    • 1.5µA @ IDLE
  • Operating Temperature: -40°C to +85°C

Notable Features:

  • Digital RSSI Function: Monitor signal strength easily.
  • Automatic Frequency Correction: Ensures stable communication.
  • Automatic Gain Control: Optimizes performance under varying conditions.
  • Fast Wake-Up and Frequency Hopping: Enhances responsiveness and reduces interference.
  • Highly Configurable Data Packet Handler: Customizable for various applications.
  • SMA Antenna: Improved signal transmission capability.

Enhancements in LoRa V2.1_1.6.1

Compared to the earlier LoRa V1.0, the V2.1_1.6.1 model includes the following upgrades:

  • SMA Connector: For enhanced signal transmission.
  • TP4054 Charging Circuit: More versatile power management.
  • Revised Power Switch: Improved interaction for easier use.

Applications:

Disaster-Radio's versatile capabilities make it suitable for:

  • Emergency Communication: Effective in disaster-stricken areas without traditional infrastructure.
  • Remote Monitoring: Use in environmental monitoring and agriculture.
  • Mesh Networking: Connecting multiple devices for extended coverage.

To explore the technologies driving our development and get involved, visit:

Features for LILYGO Disaster-Radio LoRa V2.1_1.6.1 ESP32 433/868/915Mhz WIFI Wireless Bluetooth Module 0.96 Inch OLED SD Development Board

Frequency
433MHz
