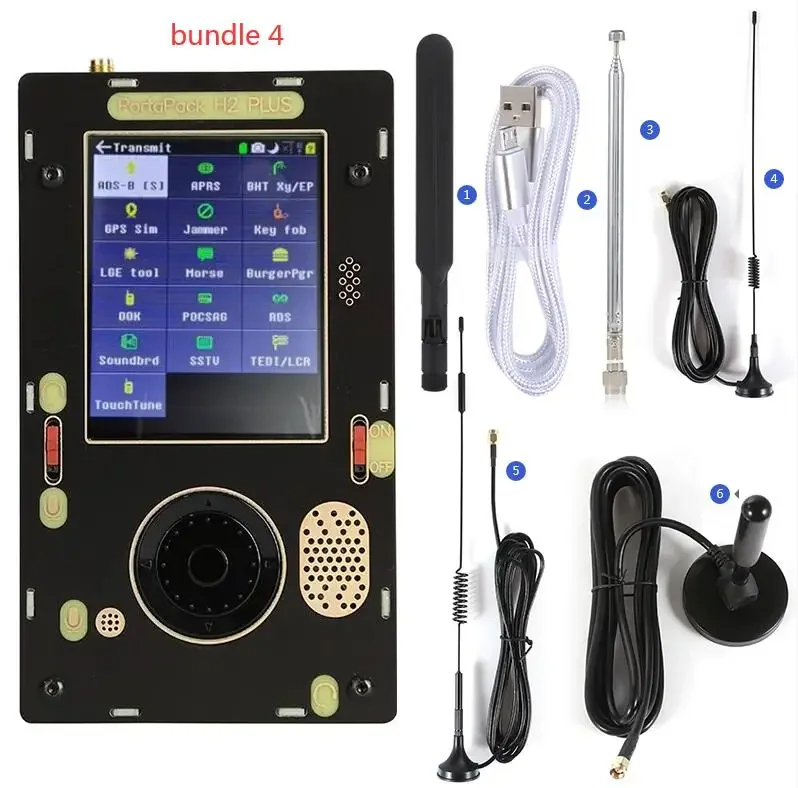

PortaPack H2 Mini Bundle 4 Mayhem 1MHz-6GHz HackRF One + Antenna + Case + Bag + Battery +Speaker

Portapack H2 PLUS update :

1. After pressing the reset key, the system restarts, which solves the problem of pressing the reset key to crash;

2. The mass production version will display the power on the LCD, cancel the LED display power, and further optimize the power loss when the battery is powered;

3. Built in microphone / external microphone, switch;

4. The built-in speaker / external speaker is automatically switched. When no external speaker is connected, the built-in speaker plays sound. When the external speaker is connected, the internal speaker automatically switches to the external speaker to play sound;

5. The knob was changed to use a 360 degree rotation knob

Turn the red toggle switch on the right to the "on" position and press the middle button of the knob to enter the function interface of portapack.

or Turn the red toggle switch on the right to the "on" position , then press the small button on the left lower corner 。

Hardware Configuration:

- 3.2 inches TFT 240 * 320 screen

- Navigation switch

- Audio output

- Microphone input

-with Speaker

- 4-layer gold plate

- ROSH process (exported to Europe and America)

Add a PortaPack to your software defined radio HackRF, and leave your laptop behind! The PortaPack connects to your HackRF and adds an LCD touchscreen, navigation controls, headphone jack, real-time clock, micro SD card slot.

Just add a USB battery, and you're ready to explore radio spectrum wherever you are. The PortaPack firmware works with the fast ARM processors in your HackRF. No computer is needed (except for firmware reprogramming).

Functions:

- 3.2 inches, 240 x 320 RGB LCD with resistive touch panel.

- Four-way arrow buttons, rotary wheel and select button.

- Coin battery to preserve settings and date / time.

- Micro SD card slot for data and storage code

- SSB, AM, narrowband FM, broadband FM audio reception, with cascade spectrum.

- Broadband (18MHz) spectrum and cascade analysis.

- Monitoring of boat (AIS), automobile (TPMS), E utility counter transponder (ITRON ERT).

- HackRF mode runs HackRF firmware for use with the SDR host computer software.

- Calibration PPM for more accurate tuning.

- Sleep mode saves energy by turning off the display only.

Features:

-Your HackRF will continue to work with the computer-based SDR software when you put the PortaPack in "HackRF mode".

-PortaPack is only compatible with the HackRF Uno. It is not compatible with the first HackRF Jawbreaker design. If you have an RF shield installed on your HackRF, the PortaPack should be fine. Compatibility with the HackRF Blu is experimental. A proprietary Blu reported good results with less interference between the audio capacitors PortaPack and the mechanical header band. If your Blue HackRF doesn't have a header band installed, you should have no mechanical problems.

-PortaPack requires an external battery. Any USB-connected battery should work, although they vary widely in quality and poorly designed batteries can inject noise voltage regulator into the radio.

-PortaPack and HackRF of Un will not replace your handheld ham radio receiver. Reception sensitivity varies from band to band, but will not perform as well as a real ham radio receive

Package List:

-1 x PortaPack H2

-1x USB cable

-1 x Antenna

-1 x Bag
