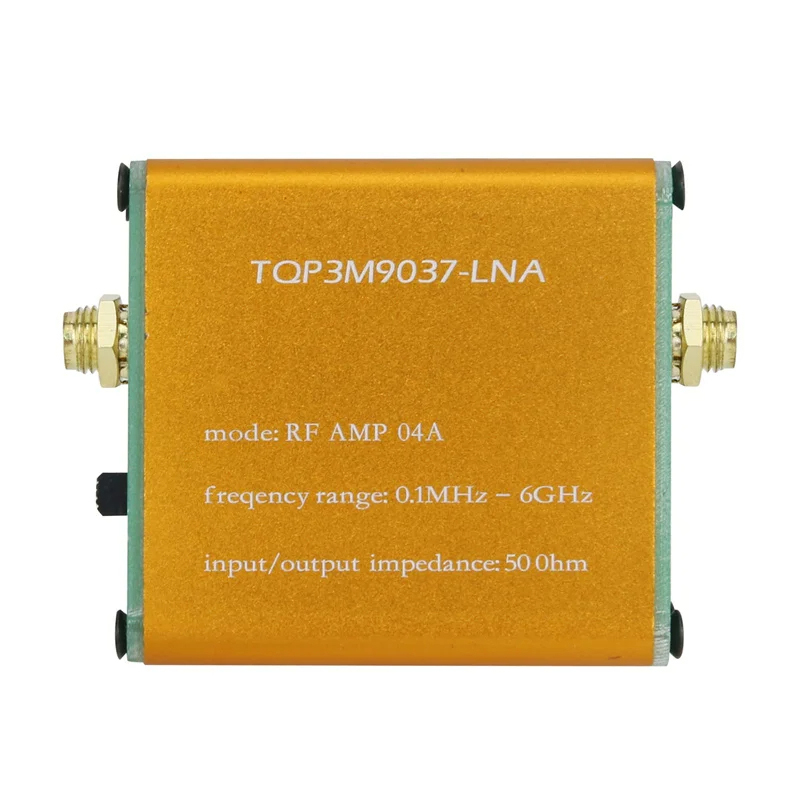

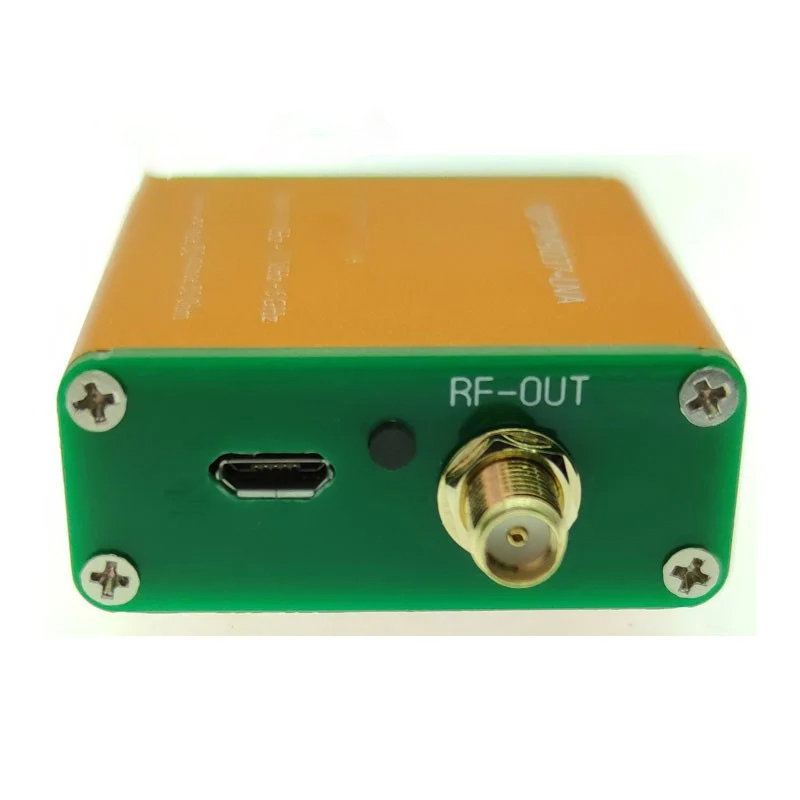

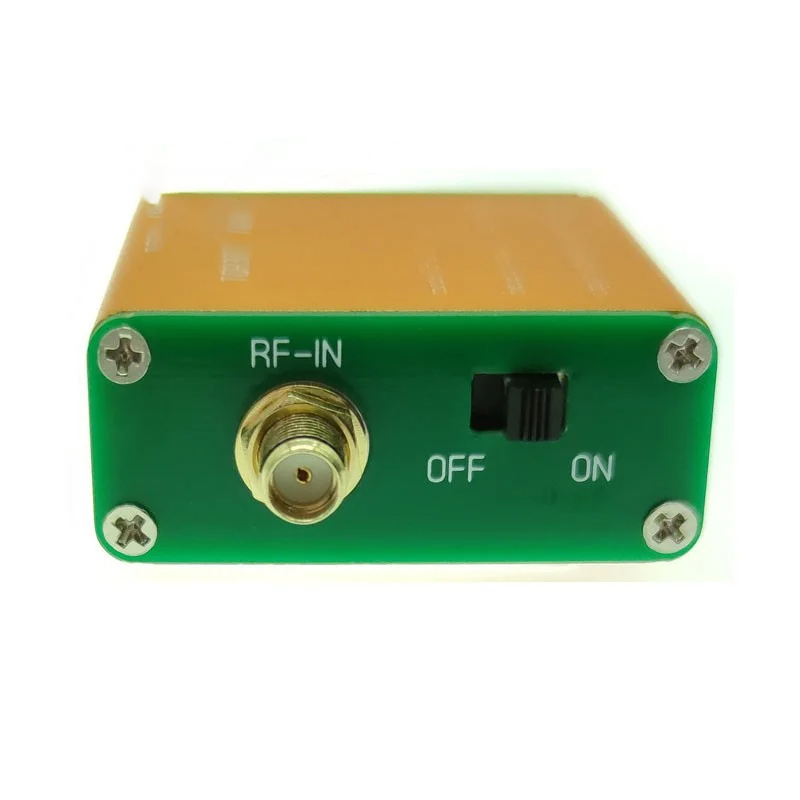

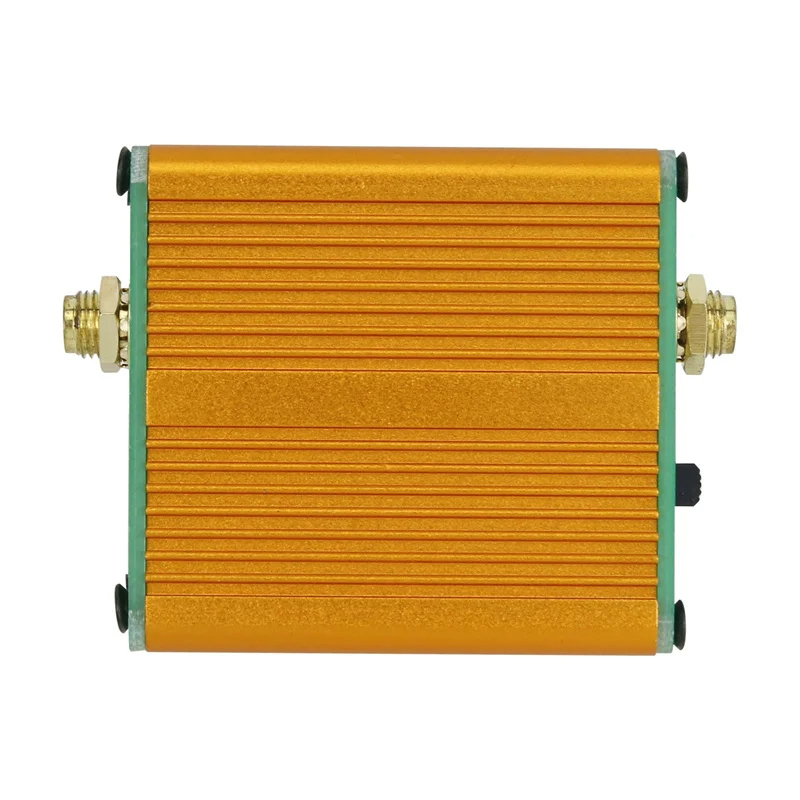

RF AMP 04A 0.1MHz-6GHz Low Noise Amplifier TQP3M9037-LNA RF Amplifier Module
RFMPMPLFCV9KS3AJ
- View all variations as list
| CODE | Version | Availability | Price | ||
|---|---|---|---|---|---|
|
RFMPMPLFFYGBIPLN
|
In stock
|
€5124 | ||
|
|
RFMPMPLFCV9KS3AJ
|
In stock
|
€4143 |
Delivery
- Without marking: Maximum 10 - 15 business days
- Fast delivery: Maximum 10 business days
- 5-Day Delivery: Maximum 5 business days in the EU
- We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages
Elevate your signal processing with our high linearity, ultra-low noise amplifier, designed for optimal performance across a wide frequency range.
Key Features
- Frequency Range: 100KHz to 6GHz
- Ultra-Low Noise Figure: 0.4 dB NF at 1.95 GHz
- High Gain: 20 dB at 1.95 GHz
- High Linearity: +35 dBm output IP3
- Robust Input Power: +22 dBm CW
- Stable Performance: Ensures consistent results
- Impedance: 50 ohm input/output
Specifications
- Power Supply: 5V, 70mA
- Connector Type: SMA female
- Size: 45 x 45 x 18.5 mm (excluding connector)
- Weight: 46g

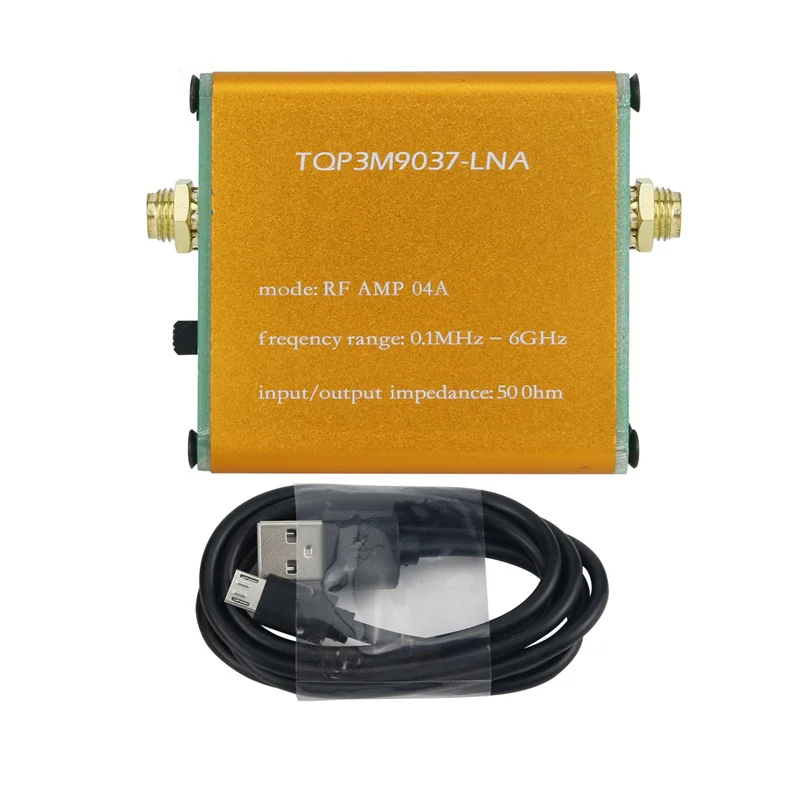

Package Includes
- 1 x LNA
Important Note
This is the battery-free version and requires a Bias-Tee power supply. Compatible devices include SDR-Play 1A, HackRF ONE, and others with built-in bias power supply functionality.
Features for RF AMP 04A 0.1MHz-6GHz Low Noise Amplifier TQP3M9037-LNA RF Amplifier Module
Version
Without Battery
