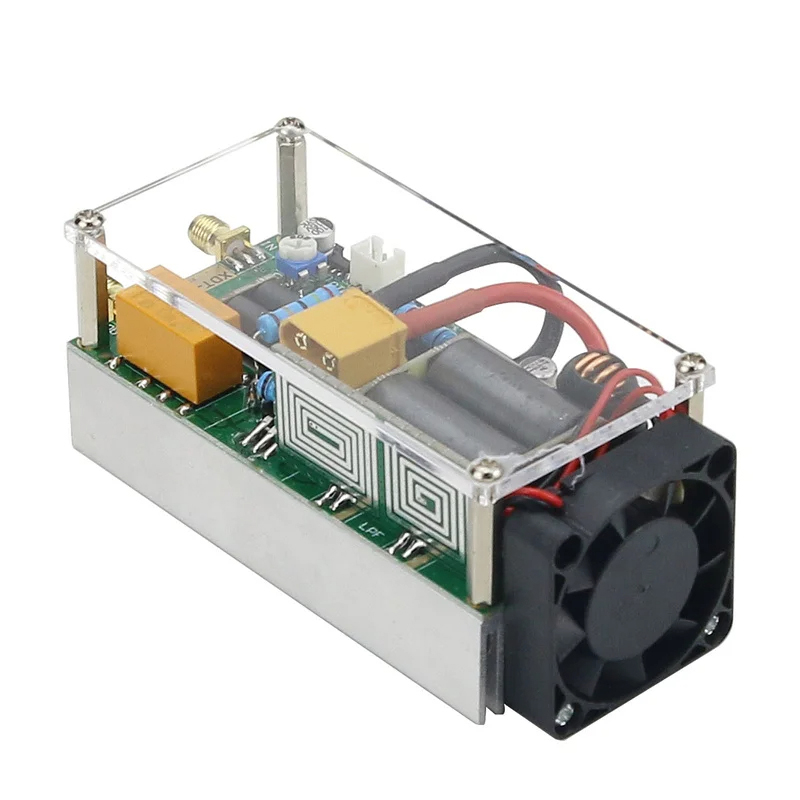

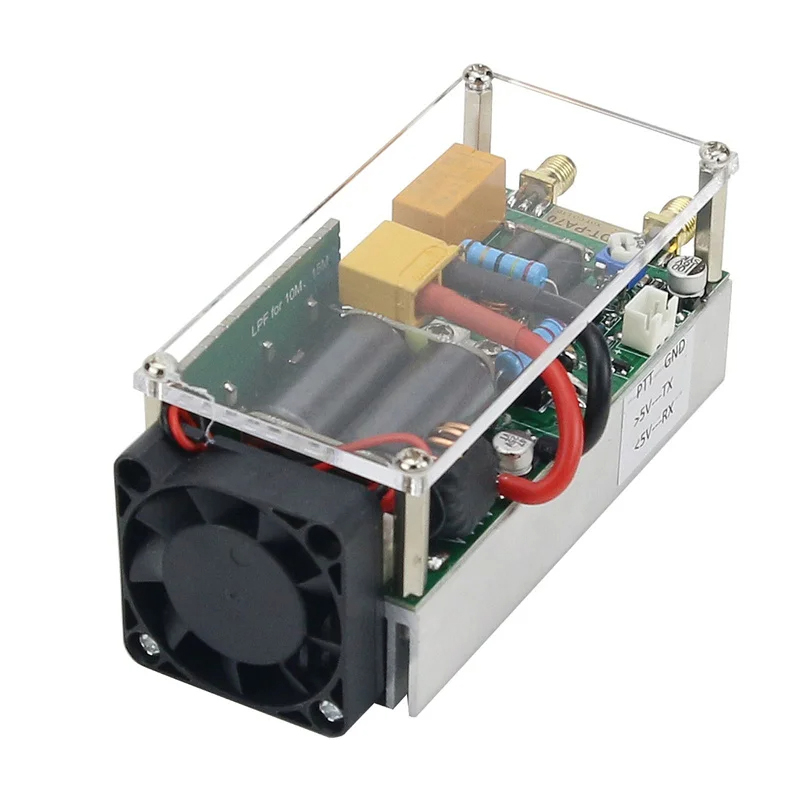

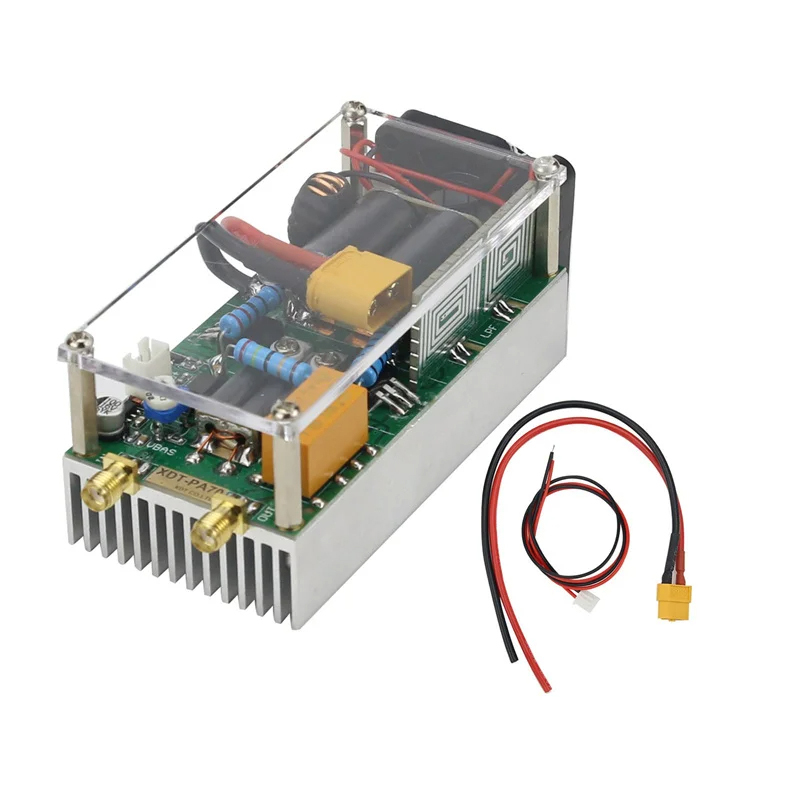

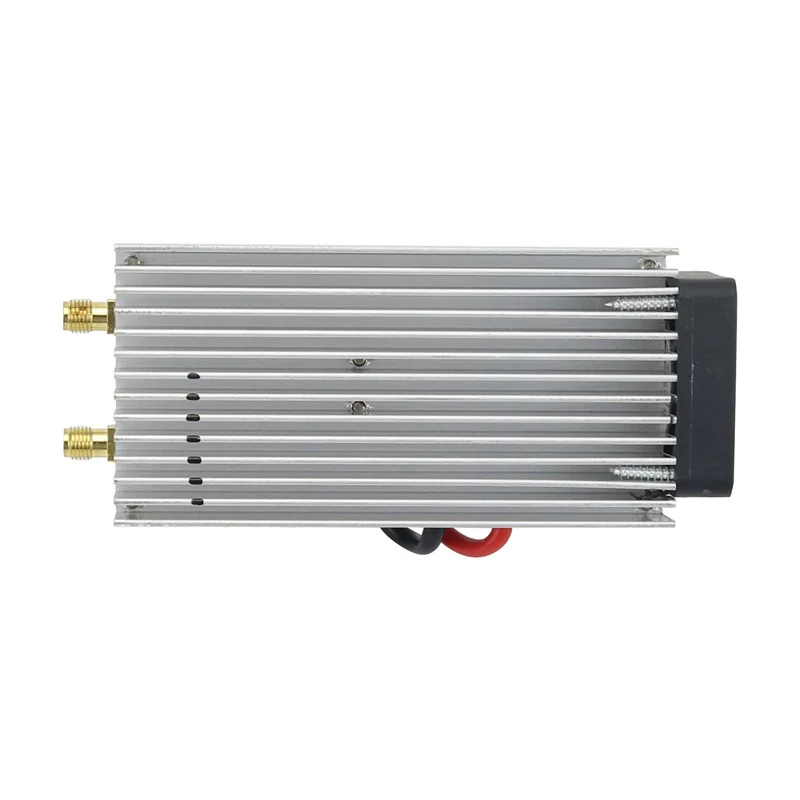

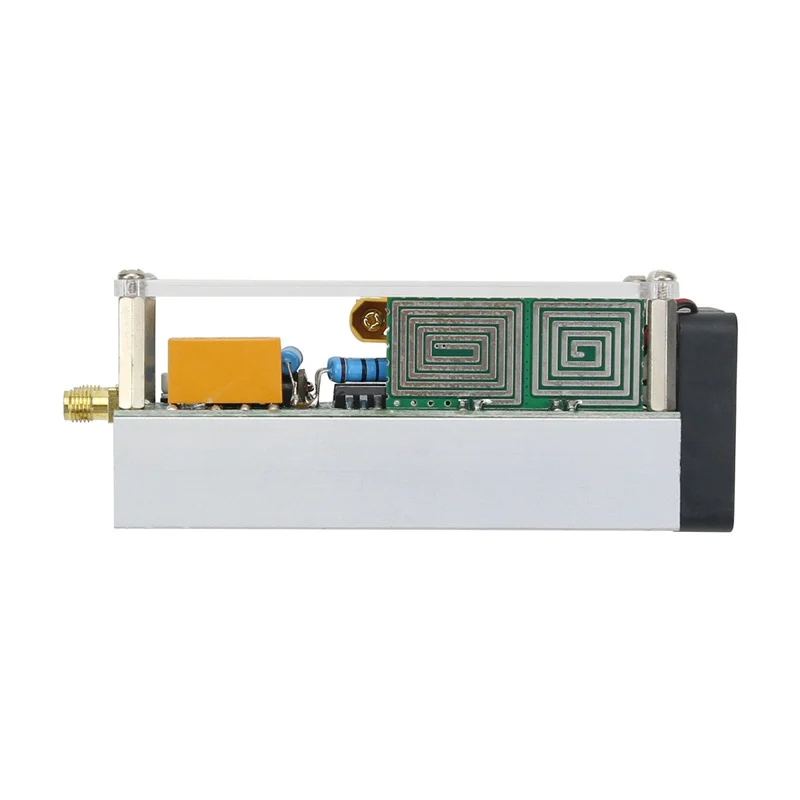

PA100 100W 3-30Mhz Shortwave Power Amplifier HF RF for X5105 G90S Radio Station HF transceiver
P100MPLFN639CXPP
Delivery
- Without marking: Maximum 10 - 15 business days
- Fast delivery: Maximum 10 business days
- 5-Day Delivery: Maximum 5 business days in the EU
- We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages
This debugged finished product is ready to enhance your radio performance. Designed for direct connection to radios, it features an integrated transceiver switching mechanism. Utilizing an AB linear amplifier, this device efficiently amplifies power for SSB, CW, AM, and FM transmissions.
Compatibility: Perfectly suited for X5105 and G90S radios, it can also serve as a general wireless radio amplifier for shortwave transmission and RF driving.
Key Features:
- Frequency Range: 3-30 MHz
- Power Supply Voltage: 12V-16V
- Current Draw: 6-10 A
- Maximum Input Power: 10W
- Maximum Output Power: 100W
- Weight: 240g
- Input and Output Interface: SMA-K
- Amplifier Gain: 10-18 dB
Package Includes:
- 1 x 3-30MHz 100W Shortwave Power Amplifier
Important Note:
This is a universal version compatible with all radios. It does not come with filters or trigger lines. you will need to create your own trigger line.
