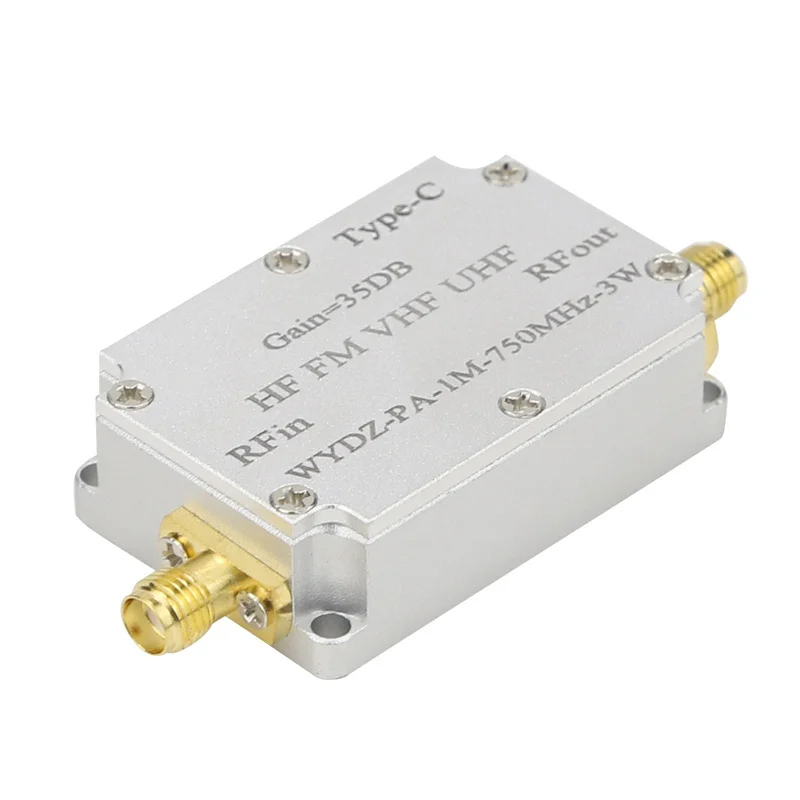

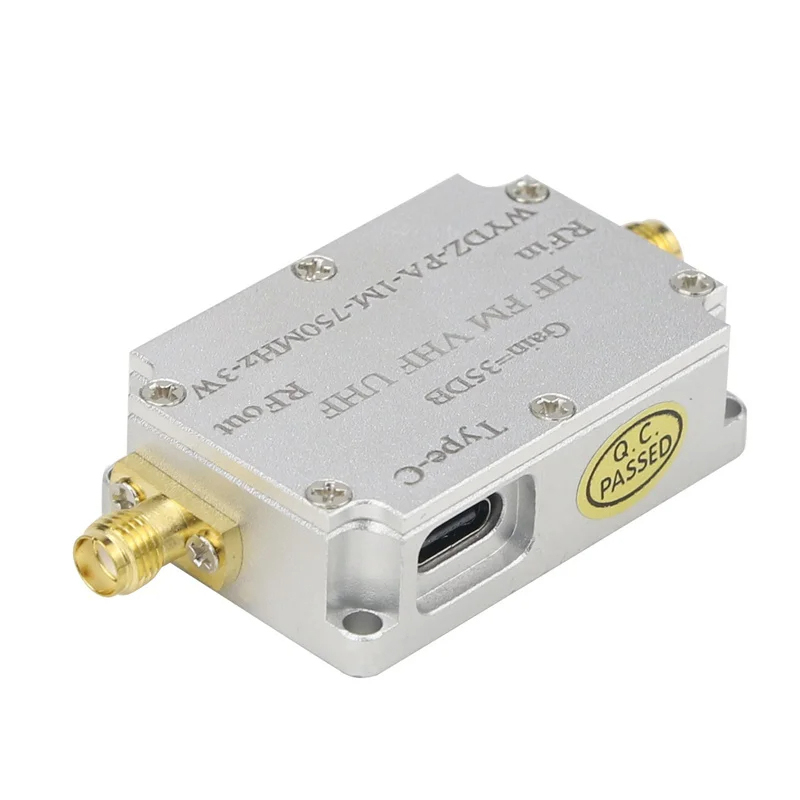

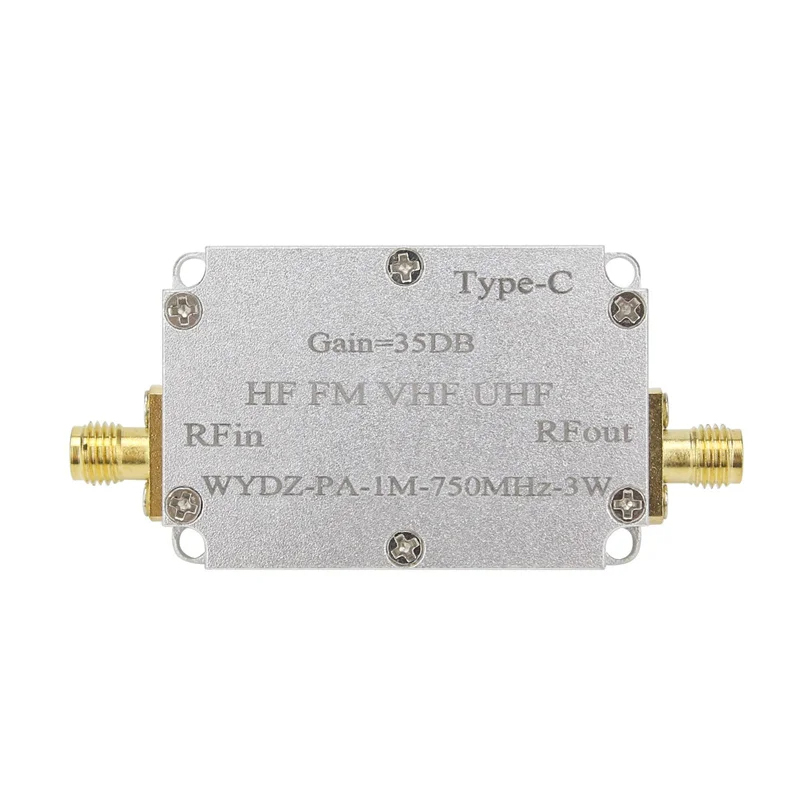

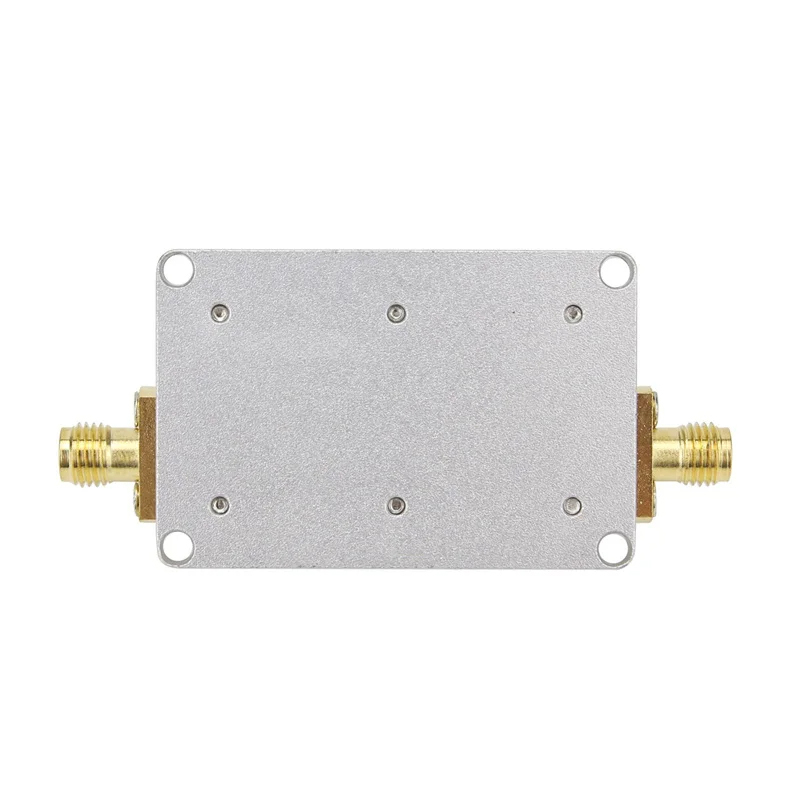

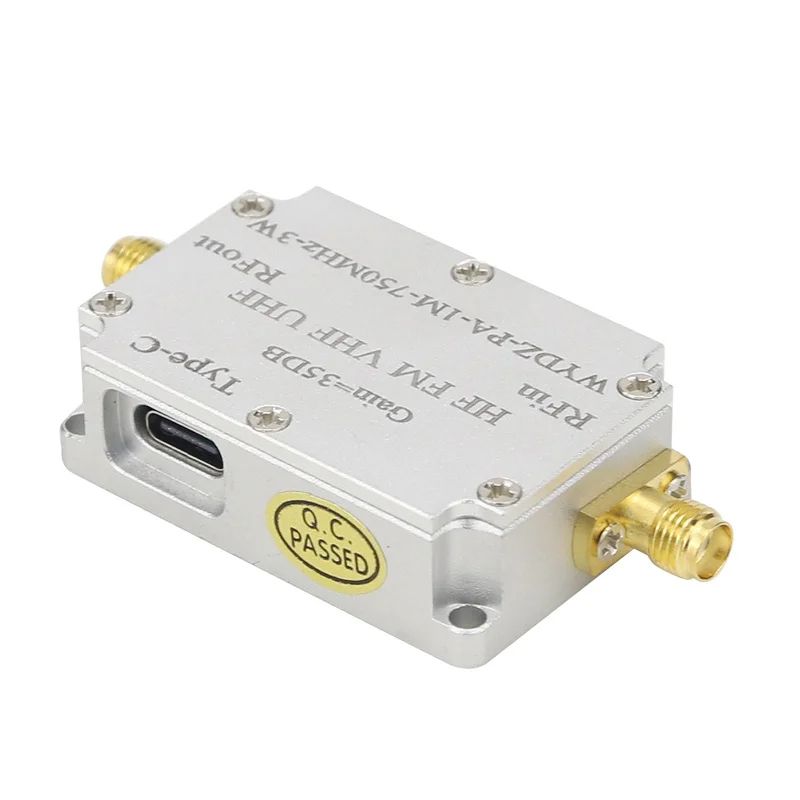

RF Power Amplifier with High Gain and Wide Frequency Range
Important Notice:
The RF power amplifier is a sensitive component. Always connect the input and output before powering it on, and ensure proper impedance matching to avoid damage.
Technical Specifications:
- Power Supply Voltage: DC +12~15V (typical 15V, 0.3-0.5A)
- Working Frequency: 1MHz-750MHz, 50-ohm input/output impedance via SMA connectors
- Maximum Output Power: 34.8 dBm (3W)
- Typical Power Gain: 35 dB (slight decrease in gain above 300MHz)
- Maximum Input Power: <+10dBm
- Size: 45 x 30 x 14 mm (with aluminum alloy shielding case)
Measured Power Index:
- 2-300MHz: Maximum +34 dBm (3W)
- 300-500MHz: Greater than +32 dBm
- 500-750MHz: Greater than +30 dBm

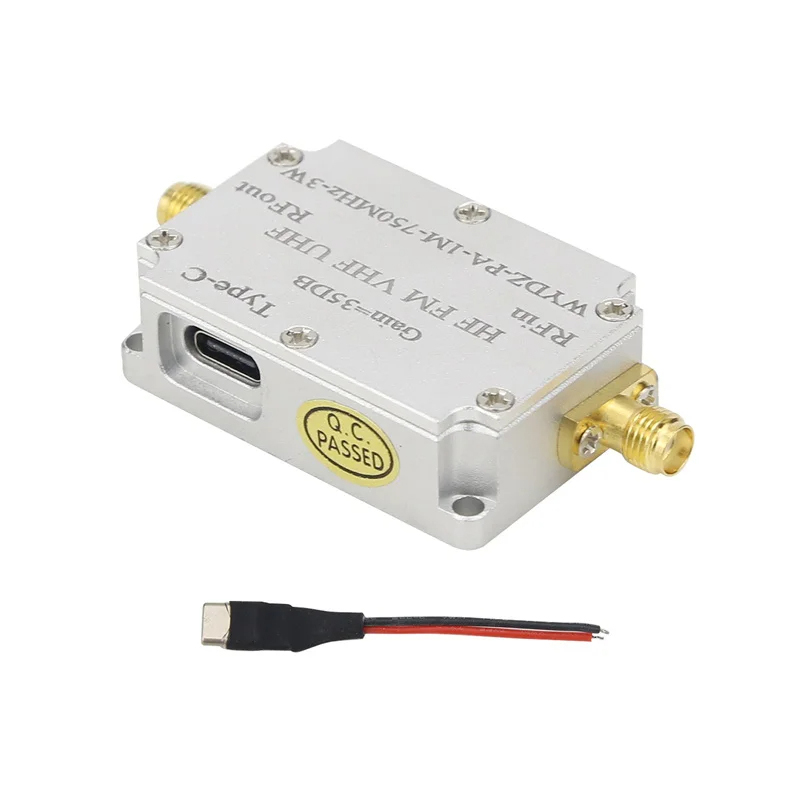

Package Includes:
- 1 x RF Power Amplifier
- 1 x Type-C Cable
Perfect for RF Applications
This RF amplifier offers high performance across a broad frequency range, ideal for applications in communication systems, signal amplification, and testing environments. With its compact design and robust power output, it's a versatile solution for enhancing signal strength.
