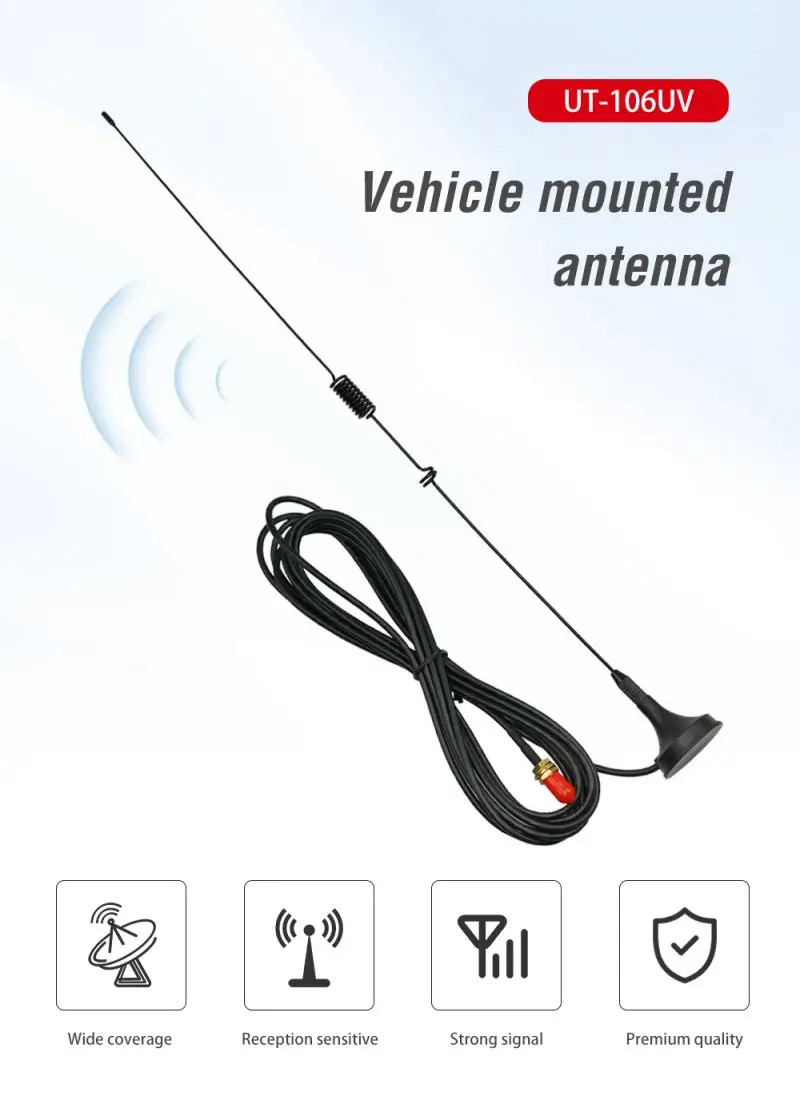

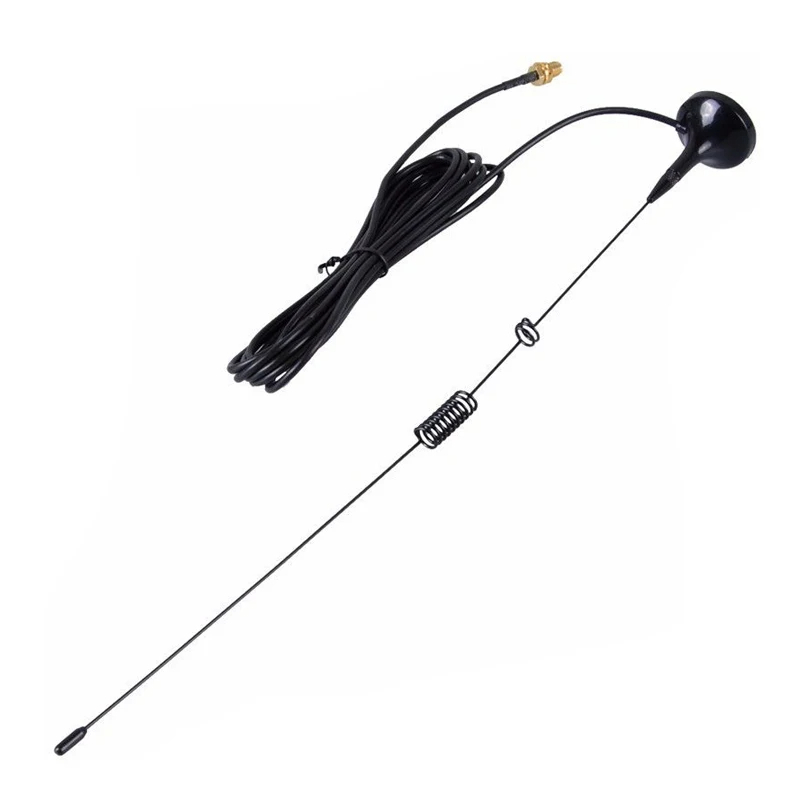

Nagoya UT-106UV Ham Radio Magnetic Antenna VHF/UHF Dual Band SMA-Female
- Without marking: Maximum 10 - 15 business days
- Fast delivery: Maximum 10 business days
- 5-Day Delivery: Maximum 5 business days in the EU
- We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Main Technical Specifications

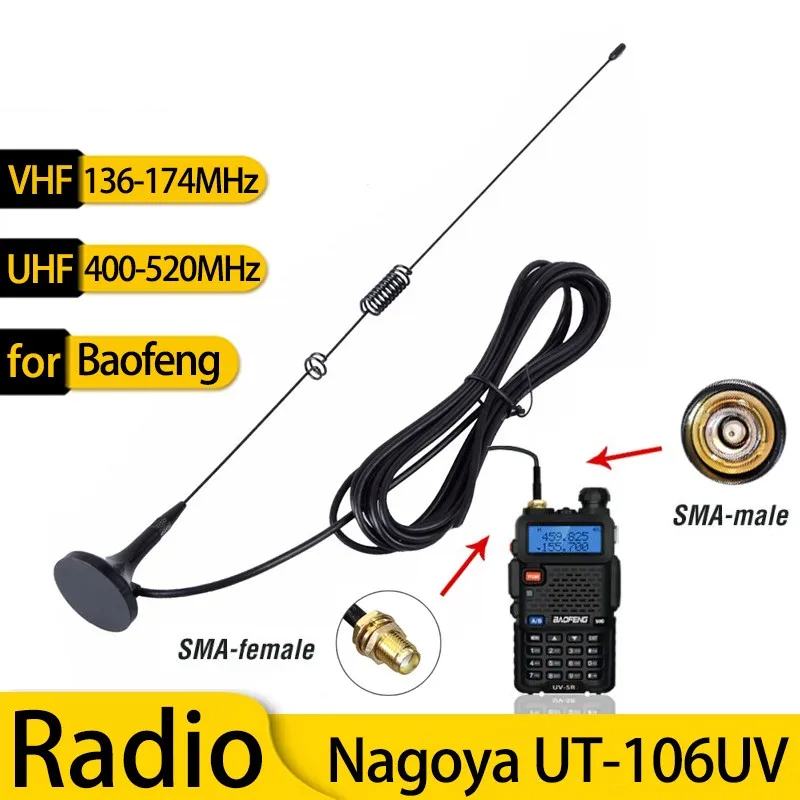

Frequency: 144/430Mhz (VHF :136-174MHz UHF: 400-520MHz)

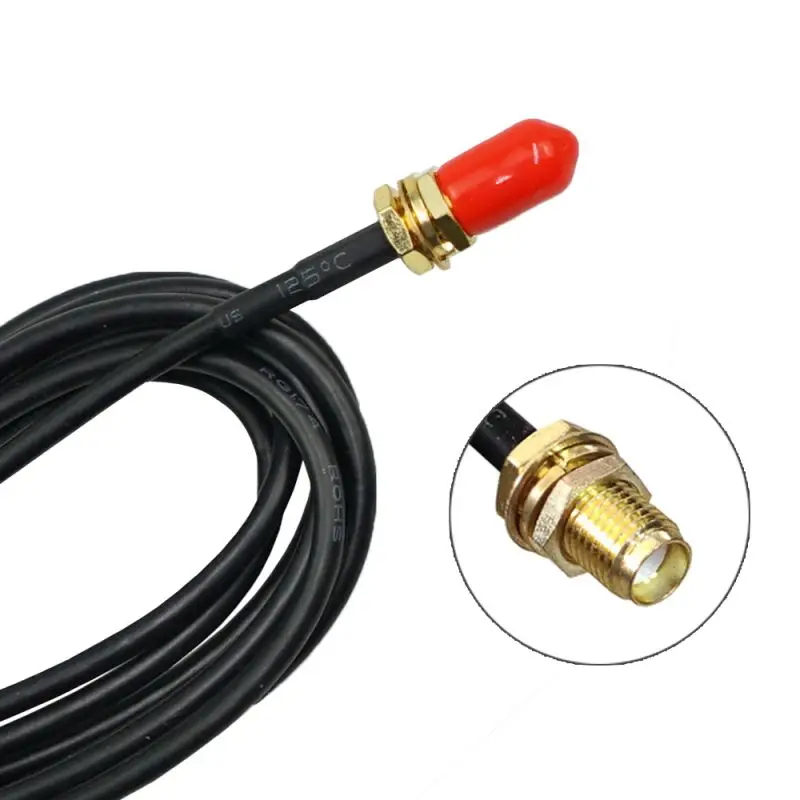

Connector: SMA-Female
Max Power: 10W
Impedance: 50ohms
Gain: 3.0 dBi
Suction cup diameter: 31mm
Antenna height: 39cm / 15.35 inch
Cable length: 3m /118.11 inch
Weight: 55g
Suitable for
Kenwood | TK-360, TK-370, TK-370G, TK-372, TK-372G, TK-3100, TK-3140, TK-3160, TK-3170, TK-3180 , TK-3200, TK-3202, TK3207 |
LINTON | LT-3288, LT-6288, LT-3188, LT-2188, LT-3260, LT-3268, LT6188, LT3288 |
PUXING | PX-777, PX-777 PLUS, PX-666, PX-888 |
WEIERWEI | VEV-3288S, VEV-6288, VEV-3288 |
QUANSHENG | TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV |
WOUXUN | KG-689, KG-689 PLUS, KG-669, KG-669 PLUS, KG-659, KG-699E, KG-UVD1 |
HYT | TC-268, TC-268S, TC-368, TC-368S, TC-370S, TC-500, TC-500S |
TYT | TH-UVF1 T2 T3 F6 300 500 600 800 900 9900 |
BAOFENG | BF-666S, BF-777S, BF-888S, BF-320, BF-480, BF-490, BF-V6, BF-V8, BF-388A, BF-UV5R, BF-UV5RA, BF-UV5RB, BF-UV5RC, BF-UV5RD, BF-UV5RE, BF-UV5REPlus, BF-UV82, BF-UVB5 B6 |
Other radios suitable for this antenna. | |
Package included: 1pcs x Nagoya UT-106UV Antenna
