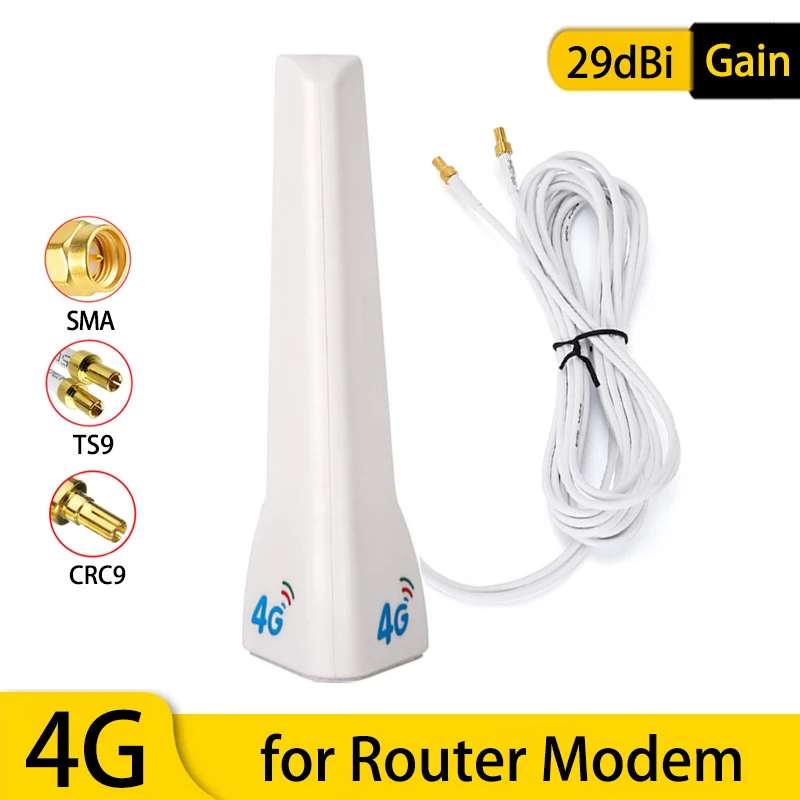

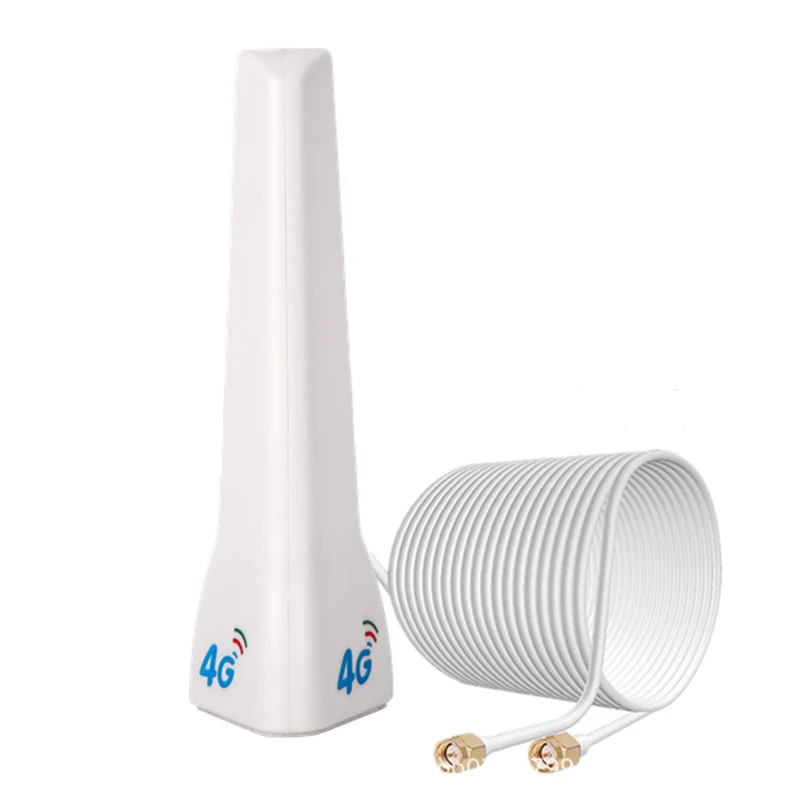

3G 4G LTE Antenna 29dBi Cellular Mobile Network WiFi Router Modem TS9 CRC9 SMA Male
- View all variations as list
| CODE | Head | Availability | Price | ||
|---|---|---|---|---|---|
|
65D24EA2A7378
|
In stock
|
€2122 | ||
|
|
65D24EA34F916
|
In stock
|
€2122 | ||
|
|
3G4GNTNNXKLBMKHM
|
In stock
|
€2122 |
- Without marking: Maximum 10 - 15 business days
- Fast delivery: Maximum 10 business days
- 5-Day Delivery: Maximum 5 business days in the EU
- We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Main Technical Specifications:
1. Frequency: A:2010-2025MHZ E:2320-2370MHZ D:2500-2690MHZ F:1880-1900MHZ LTE:450-470/2300-2400MHZ
2. Voltage standing wave ratio: <= 1.5
3. Gain 29 dbi
4. Polarization type: vertical
5. Rated power: 50 w
6. Input impedance: 50 ohm nominal
7. Dimensions: 15* 4.5* 4.5 cm
8. Vertical base scale
9. Cable type: RG174 (best) 100>#/p###
10. Length: 2m

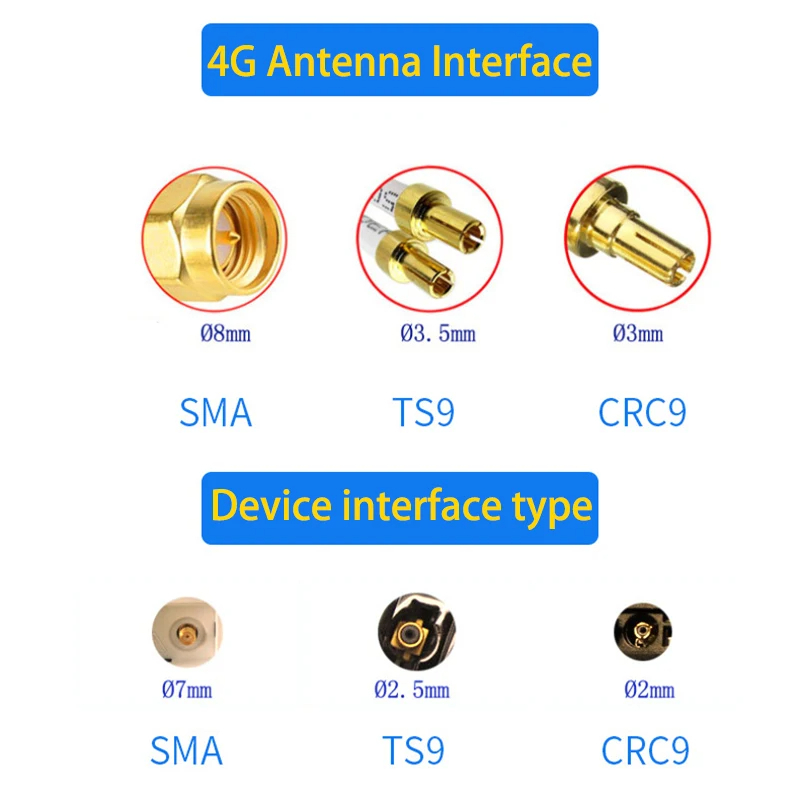

11. Connector type: SMA / TS9 / CRC9
12. Installation method: adsorption and hanging
TS9 connector is suitable for:
1.Vodafone R215, Vodafone R212, Vodafone K5150, Vodafone K5005, Vodafone K5006Z, Vodafone R226, Vodafone CarStick W5101
ZTE MF980, ZTE MF287 3neo, ZTE MF821D, ZTE MF821, ZTE MF910, ZTE MF90, ZTE MF93E, ZTE MF91D, ZTE MF91, ZTE MF91T, ZTE MF93D, ZTE MF91S, ZTE Flare, ZTE MF827, ZTE 825 MF75, ZTE MF825, ZTE MF831, ZTE MF823, ZTE MF279, ZTE MF971V
2.Netgear Aircard 340u, Netgear Aircard 341u, Sierra Aircard 313u, Sierra Aircard 320u, Sierra Aircard 330u, Sierra 754s, Sierra Aircard 760s, Sierra Aircard 762s, Sierra Aircard 763s, Sierra Aircard 770s, Netgear Aircard 771s, Netgear 782s, Netgear 782s, Netgear 782s Netgear 778s, Netgear 790S (AC790S), Netgear 779s (AC779S), Netgear AC791L (Verizon Jetpack), Netgear aviation card AC810S (Telstra WiFi 4G Advanced III), Netgear LB1111, Netgear Nighthawk M1 MR1100, Netgear aviation card AC800S (Opt-Fi) Modem (Cat 9) AC800S)
3.Huawei UML397, Huawei E397, Huawei E398, Huawei E392, Huawei E8278, Huawei E5373, Huawei E5775, Huawei E5786, Huawei E5776, Huawei E589, Huawei E5372, Huawei E5375, Huawei E5377, Huawei EC3372-871, Huawei E8372, Huawei E5577, Huawei E5577C, Huawei E5573, Huawei E5787, Huawei E5785, Huawei B528s-23a (Vodafone GigaCube), Huawei B618
SMA is suitable for:
1.ZTE MF28G, ZTE MF29T, ZTE MF29S2, ZTE MF28D, ZTE MF283, ZTE MF285
Huawei E5186, Huawei B890, Huawei E5175, Huawei B880, Huawei B310, Huawei B315, Huawei B593u-12, Huawei B593s-22, Huawei B593u-91, Huawei B593u, Huawei E5172S-22, Huawei E5172AS-22, Huawei E5172, Huawei B525, Huawei B612, Huawei B520s-93a, Huawei B715 (B715s-23c)
2.Vodafone B4000, Vodafone B3500, Vodafone B3000, Vodafone B2000, Vodafone B1000
Alcatel Linkhub HH40, Alcatel Linkhub HH70, Alcatel Linkhub HH41
CRC9 is suitable for:
Huawei E3276, Vodafone K5007, Huawei EC3372, Huawei E3372, Huawei E3272, Vodafone K5160 (K5160-H)
